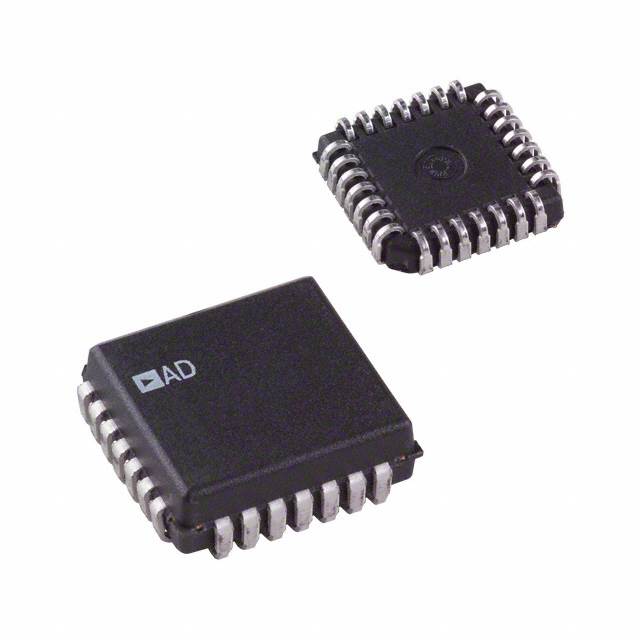

Analog Devices Inc. ADG407BPZ
Regular price
$19.95
Regular price
$21.00
Sale price
$19.95
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.95 | $19.95 |
| 15+ | $19.32 | $289.80 |
| 25+ | $18.90 | $472.50 |
| 50+ | $17.85 | $892.50 |
| 100+ | $15.75 | $1,575.00 |
| N+ | $3.15 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 160ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-LCC (J-Lead) |
| ROHS |  |
ADG407BPZ.pdf
×
