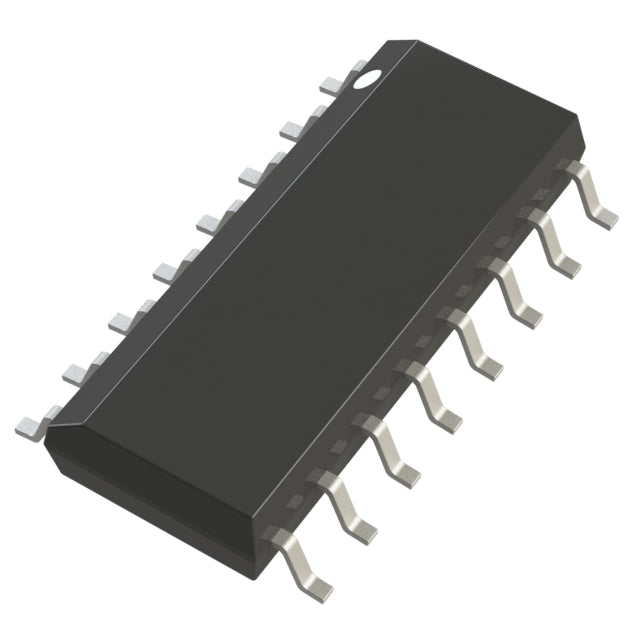

Analog Devices Inc. ADG413BRZ
Regular price
$8.63
Regular price
$9.08
Sale price
$8.63
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.63 | $8.63 |
| 15+ | $8.35 | $125.25 |
| 25+ | $8.17 | $204.25 |
| 50+ | $7.72 | $386.00 |
| 100+ | $6.81 | $681.00 |
| N+ | $1.36 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
ADG413BRZ.pdf
×
