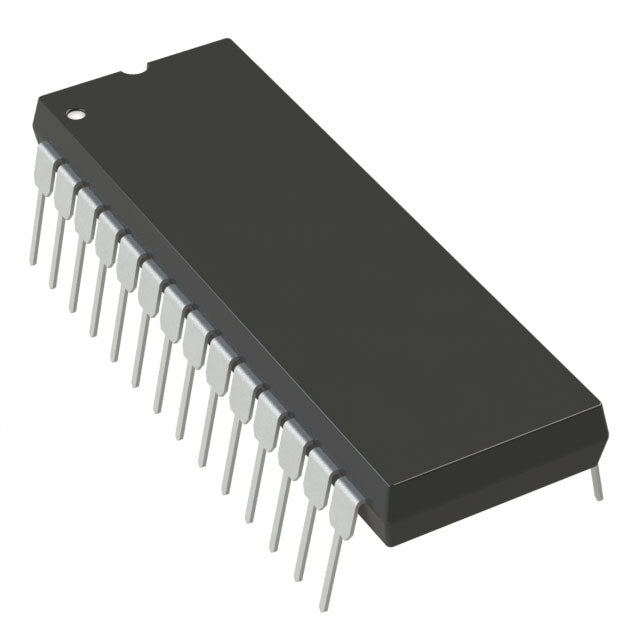

Analog Devices Inc. ADG426BN
Regular price
$46.08
Regular price
$11.52
Sale price
$46.08
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $46.08 | $46.08 |
| 15+ | $10.60 | $159.00 |
| 25+ | $10.37 | $259.25 |
| 50+ | $9.79 | $489.50 |
| 100+ | $8.64 | $864.00 |
| N+ | $1.73 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 160ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 50pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-DIP (0.600", 15.24mm) |
ADG426BN.pdf
×
