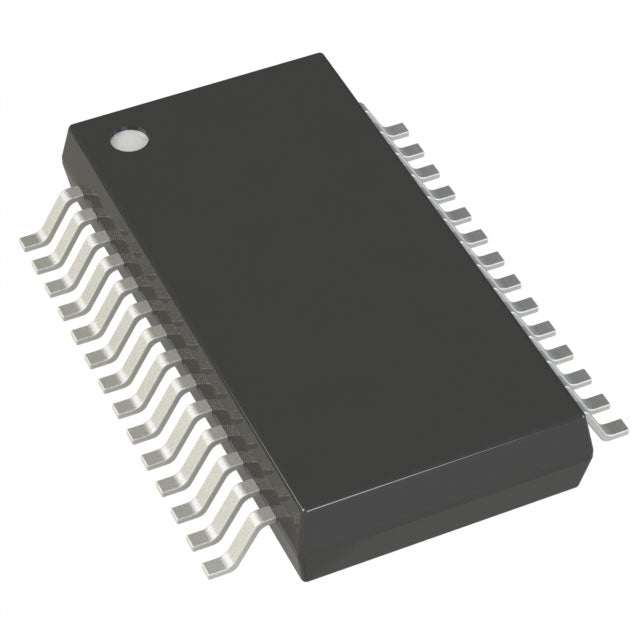

Analog Devices Inc. ADG426BRSZ
Regular price
$19.56
Regular price
$20.59
Sale price
$19.56
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.56 | $19.56 |
| 15+ | $18.94 | $284.10 |
| 25+ | $18.53 | $463.25 |
| 50+ | $17.50 | $875.00 |
| 100+ | $15.44 | $1,544.00 |
| N+ | $3.09 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 160ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 50pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
ADG426BRSZ.pdf
×
