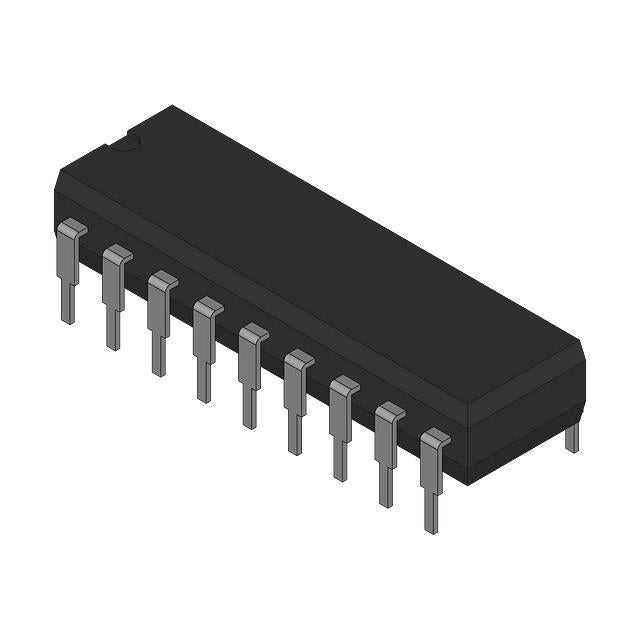

Analog Devices Inc. ADG429TQ
Regular price
$35.20
Regular price
$8.80
Sale price
$35.20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $35.20 | $35.20 |
| 15+ | $8.10 | $121.50 |
| 25+ | $7.92 | $198.00 |
| 50+ | $7.48 | $374.00 |
| 100+ | $6.60 | $660.00 |
| N+ | $1.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CDIP (0.300", 7.62mm) |
ADG429TQ.pdf
×
