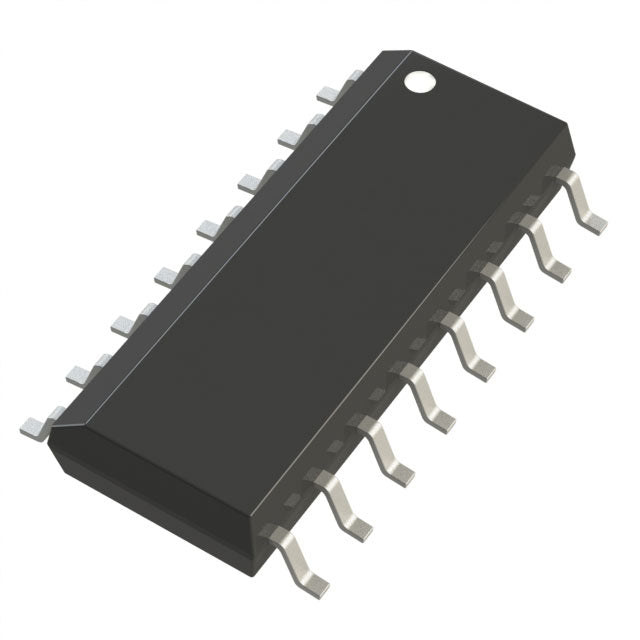

Analog Devices Inc. ADG439FBRZ
Regular price
$12.63
Regular price
$13.29
Sale price
$12.63
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.63 | $12.63 |
| 15+ | $12.23 | $183.45 |
| 25+ | $11.96 | $299.00 |
| 50+ | $11.30 | $565.00 |
| 100+ | $9.97 | $997.00 |
| N+ | $1.99 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 270Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 8.1Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 230ns, 130ns |
| -3db Bandwidth | - |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -93dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
ADG439FBRZ.pdf
×
