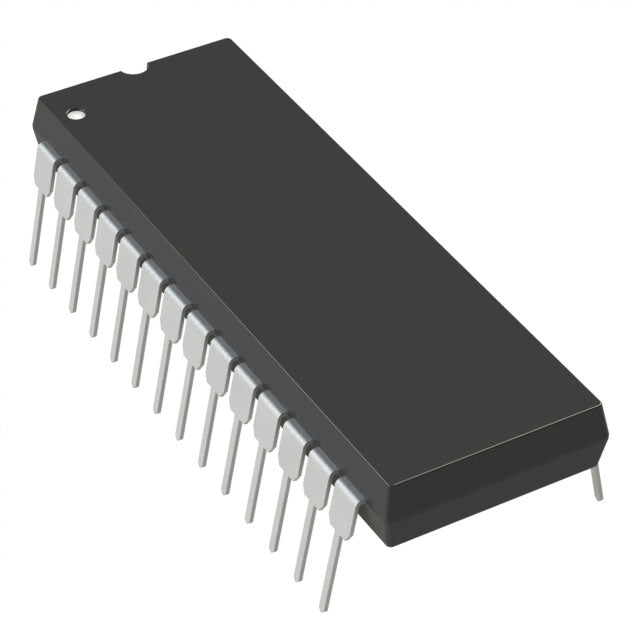

Analog Devices Inc. ADG506AKN
Regular price
$47.52
Regular price
$11.88
Sale price
$47.52
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $47.52 | $47.52 |
| 15+ | $10.93 | $163.95 |
| 25+ | $10.69 | $267.25 |
| 50+ | $10.10 | $505.00 |
| 100+ | $8.91 | $891.00 |
| N+ | $1.78 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-DIP (0.600", 15.24mm) |
ADG506AKN.pdf
×
