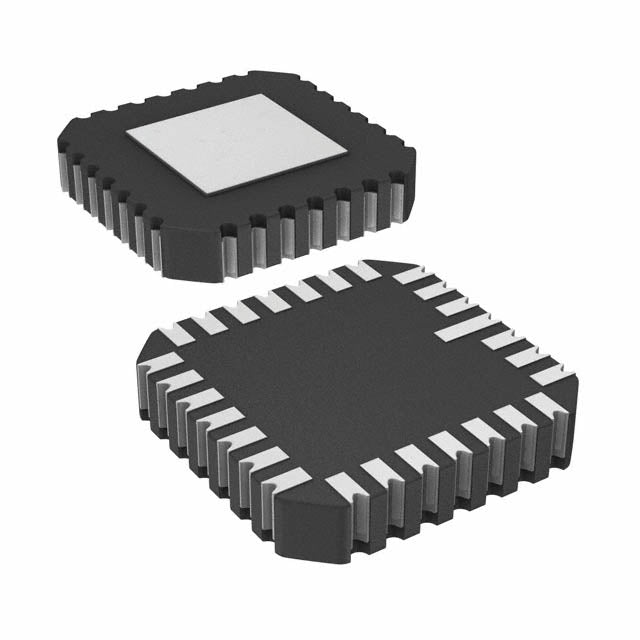

Analog Devices Inc. ADG506ATE/883B
Regular price
$177.74
Regular price
$187.09
Sale price
$177.74
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $177.74 | $177.74 |
| 15+ | $172.12 | $2,581.80 |
| 25+ | $168.38 | $4,209.50 |
| 50+ | $159.03 | $7,951.50 |
| 100+ | $140.32 | $14,032.00 |
| N+ | $28.06 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Typ) |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC |
| Supplier Device Package | 28-LCC |
| ROHS |  |
ADG506ATE/883B.pdf
×
