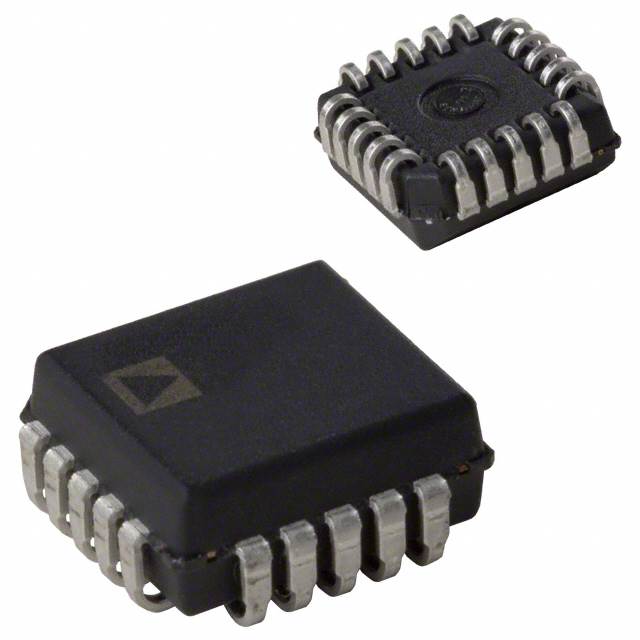

Analog Devices Inc. ADG509AKPZ
Regular price
Dhs. 17.08
Regular price
Dhs. 17.98
Sale price
Dhs. 17.08
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 17.08 | Dhs. 17.08 |
| 15+ | Dhs. 16.54 | Dhs. 248.10 |
| 25+ | Dhs. 16.18 | Dhs. 404.50 |
| 50+ | Dhs. 15.28 | Dhs. 764.00 |
| 100+ | Dhs. 13.49 | Dhs. 1,349.00 |
| N+ | Dhs. 2.70 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 22.5Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-LCC (J-Lead) |
ADG509AKPZ.pdf
×
