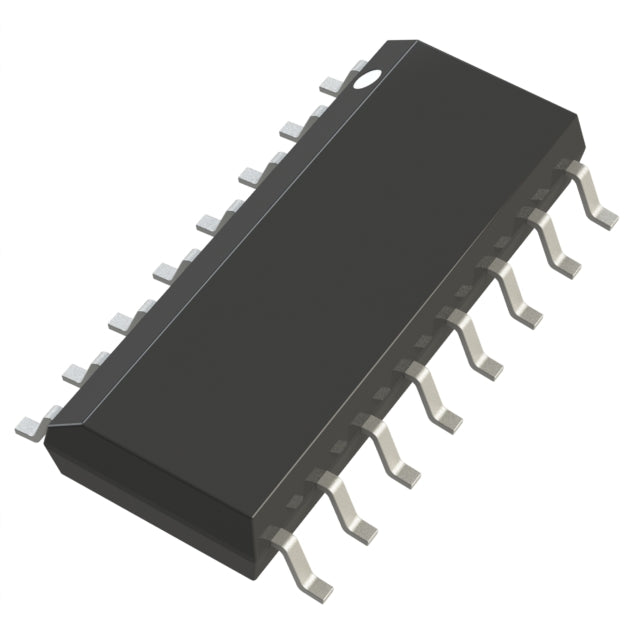

Analog Devices Inc. ADG511BR-REEL7
Regular price
Dhs. 13.82
Regular price
Dhs. 14.53
Sale price
Dhs. 13.82
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 13.82 | Dhs. 13.82 |
| 15+ | Dhs. 13.37 | Dhs. 200.55 |
| 25+ | Dhs. 13.08 | Dhs. 327.00 |
| 50+ | Dhs. 12.35 | Dhs. 617.50 |
| 100+ | Dhs. 10.90 | Dhs. 1,090.00 |
| N+ | Dhs. 2.18 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 30Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 200ns, 120ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | 11pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
ADG511BR-REEL7.pdf
×
