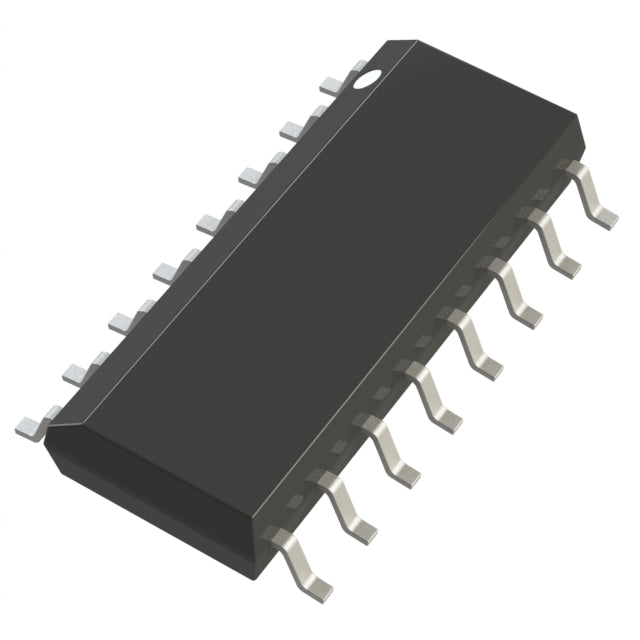

Analog Devices Inc. ADG512BRZ
Regular price
$12.09
Regular price
$12.73
Sale price
$12.09
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.09 | $12.09 |
| 15+ | $11.71 | $175.65 |
| 25+ | $11.46 | $286.50 |
| 50+ | $10.82 | $541.00 |
| 100+ | $9.55 | $955.00 |
| N+ | $1.91 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 30Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 200ns, 120ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | 11pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
ADG512BRZ.pdf
×
