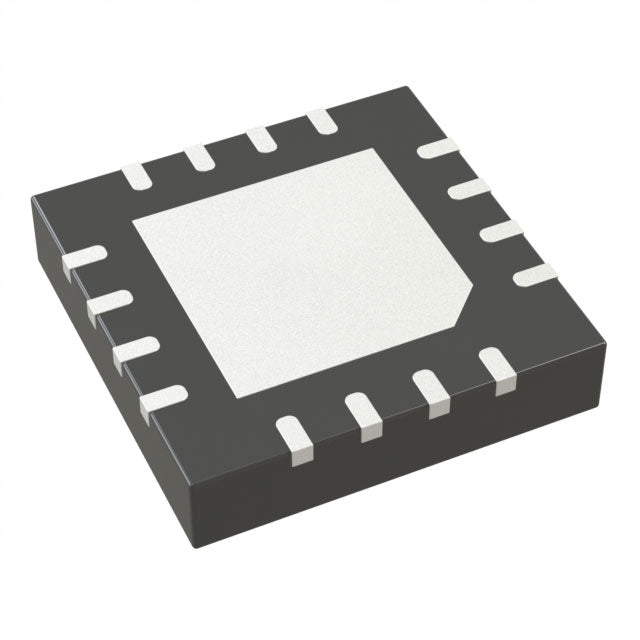

Analog Devices Inc. ADG5204BCPZ-RL7
Regular price
Dhs. 29.15
Regular price
Dhs. 30.68
Sale price
Dhs. 29.15
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 29.15 | Dhs. 29.15 |
| 15+ | Dhs. 28.23 | Dhs. 423.45 |
| 25+ | Dhs. 27.61 | Dhs. 690.25 |
| 50+ | Dhs. 26.08 | Dhs. 1,304.00 |
| 100+ | Dhs. 23.01 | Dhs. 2,301.00 |
| N+ | Dhs. 4.60 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 4.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 185ns, 175ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | -0.6pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-WQFN Exposed Pad, CSP |
| ROHS |  |
ADG5204BCPZ-RL7.pdf
×
