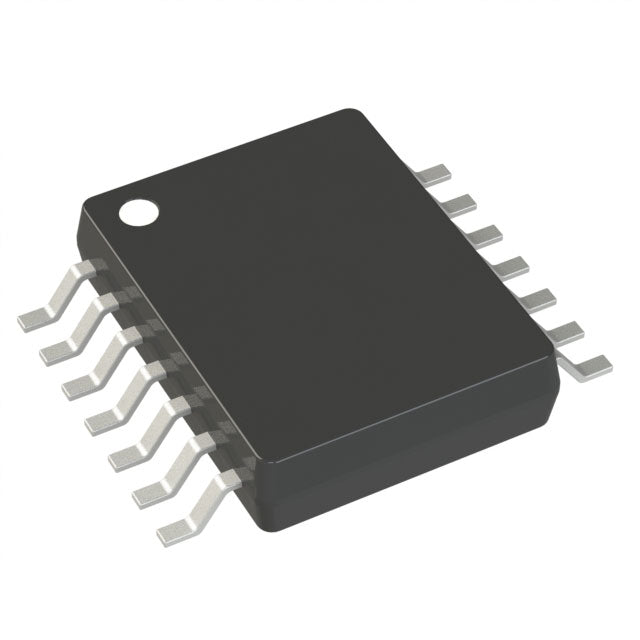

Analog Devices Inc. ADG5204BRUZ
Regular price
$8.13
Regular price
$8.56
Sale price
$8.13
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.13 | $8.13 |
| 15+ | $7.88 | $118.20 |
| 25+ | $7.70 | $192.50 |
| 50+ | $7.28 | $364.00 |
| 100+ | $6.42 | $642.00 |
| N+ | $1.28 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 4.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 185ns, 175ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | -0.6pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
ADG5204BRUZ.pdf
×
