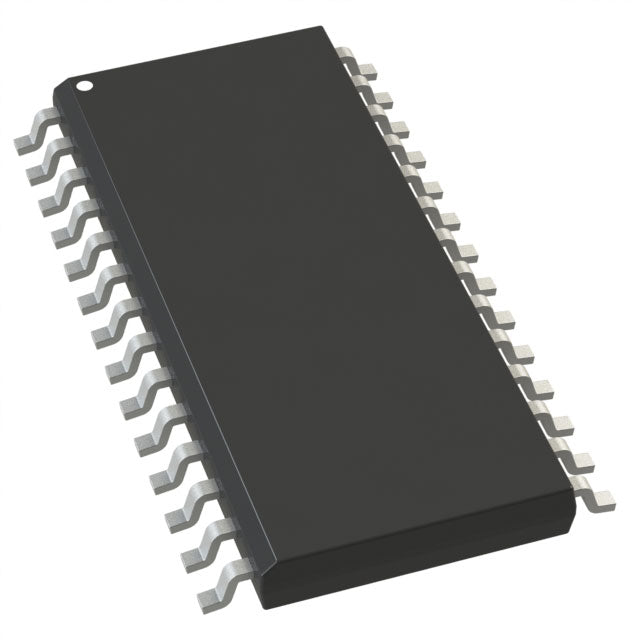

Analog Devices Inc. ADG5206BRUZ
Regular price
$13.39
Regular price
$14.09
Sale price
$13.39
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.39 | $13.39 |
| 15+ | $12.96 | $194.40 |
| 25+ | $12.68 | $317.00 |
| 50+ | $11.98 | $599.00 |
| 100+ | $10.57 | $1,057.00 |
| N+ | $2.11 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 230ns, 185ns |
| -3db Bandwidth | 65MHz |
| Charge Injection | 0.45pC |
| Channel Capacitance (CS(off), CD(off)) | 3.3pf, 62pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -76dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
ADG5206BRUZ.pdf
×
