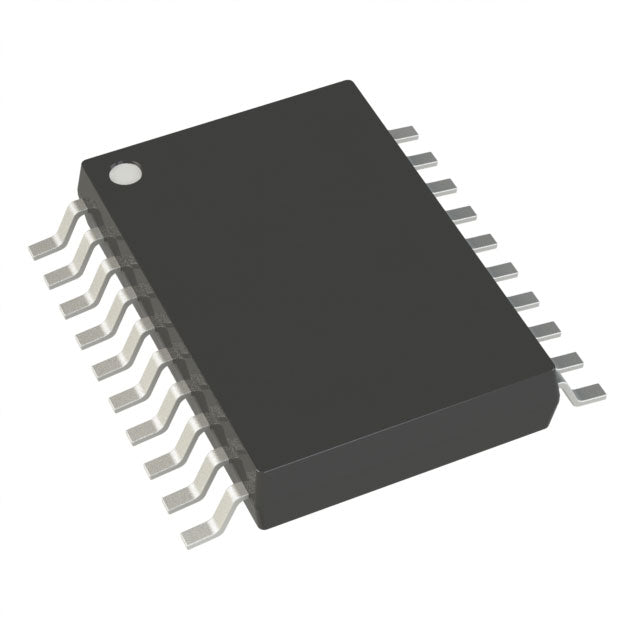

Analog Devices Inc. ADG5243FBRUZ
Regular price
$12.26
Regular price
$12.90
Sale price
$12.26
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.26 | $12.26 |
| 15+ | $11.87 | $178.05 |
| 25+ | $11.61 | $290.25 |
| 50+ | $10.97 | $548.50 |
| 100+ | $9.68 | $968.00 |
| N+ | $1.94 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 335Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Voltage - Supply, Single (V+) | 8V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 215ns, 85ns |
| -3db Bandwidth | 350MHz |
| Charge Injection | -1.4pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
ADG5243FBRUZ.pdf
×
