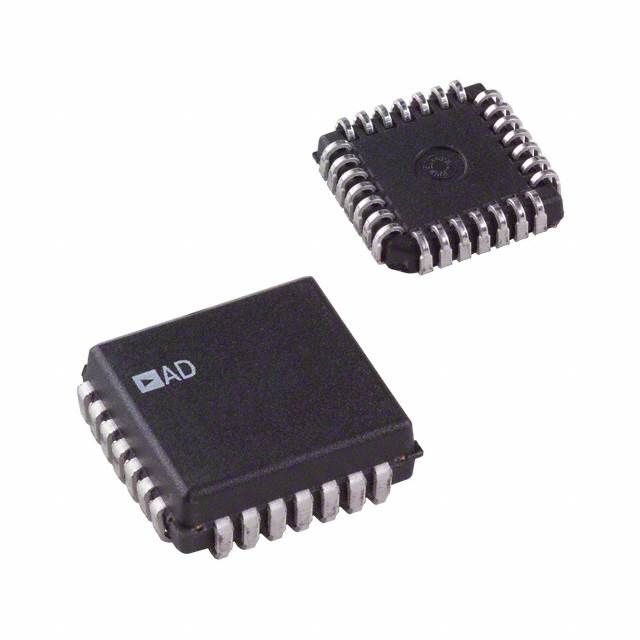

Analog Devices Inc. ADG526AKP
Regular price
$45.20
Regular price
$11.30
Sale price
$45.20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $45.20 | $45.20 |
| 15+ | $10.40 | $156.00 |
| 25+ | $10.17 | $254.25 |
| 50+ | $9.61 | $480.50 |
| 100+ | $8.48 | $848.00 |
| N+ | $1.70 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 22.5Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-LCC (J-Lead) |
ADG526AKP.pdf
×
