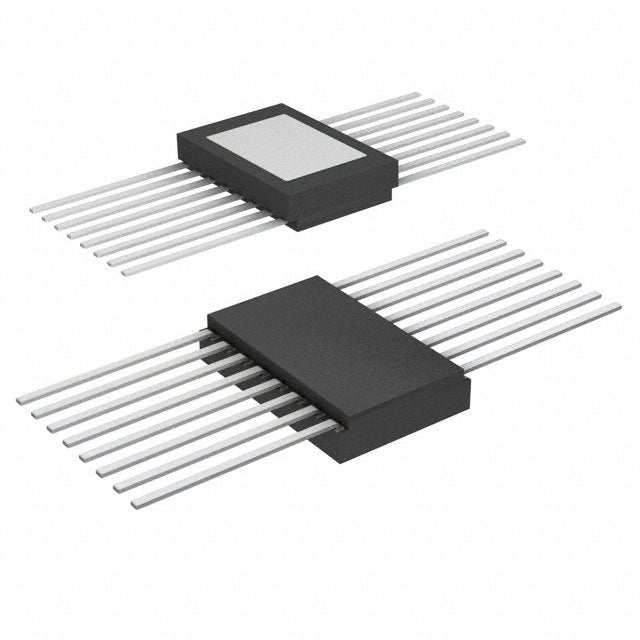

Analog Devices Inc. ADG5298HFZ
Regular price
$181.70
Regular price
$191.26
Sale price
$181.70
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $181.70 | $181.70 |
| 15+ | $175.96 | $2,639.40 |
| 25+ | $172.13 | $4,303.25 |
| 50+ | $162.57 | $8,128.50 |
| 100+ | $143.45 | $14,345.00 |
| N+ | $28.69 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 350Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 245ns, 260ns |
| -3db Bandwidth | 121MHz |
| Charge Injection | 0.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 33pF |
| Current - Leakage (IS(off)) (Max) | 8nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -55°C ~ 210°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-CFlatPack |
| Supplier Device Package | 16-CFlatPack |
| ROHS |  |
ADG5298HFZ.pdf
×
