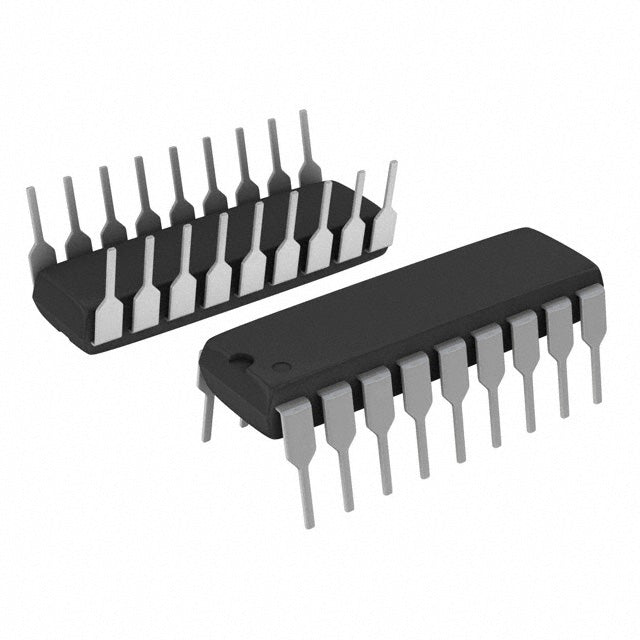

Analog Devices Inc. ADG529AKN
Regular price
$29.20
Regular price
$7.30
Sale price
$29.20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.20 | $29.20 |
| 15+ | $6.72 | $100.80 |
| 25+ | $6.57 | $164.25 |
| 50+ | $6.21 | $310.50 |
| 100+ | $5.48 | $548.00 |
| N+ | $1.10 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 22.5Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-DIP (0.300", 7.62mm) |
ADG529AKN.pdf
×
