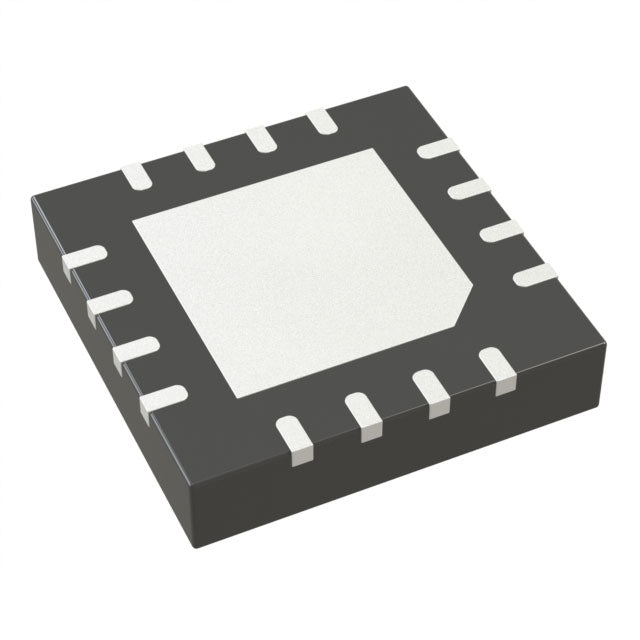

Analog Devices Inc. ADG5436FBCPZ-RL7
Regular price
Dhs. 43.42
Regular price
Dhs. 45.70
Sale price
Dhs. 43.42
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 43.42 | Dhs. 43.42 |
| 15+ | Dhs. 42.04 | Dhs. 630.60 |
| 25+ | Dhs. 41.13 | Dhs. 1,028.25 |
| 50+ | Dhs. 38.85 | Dhs. 1,942.50 |
| 100+ | Dhs. 34.28 | Dhs. 3,428.00 |
| N+ | Dhs. 6.86 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 11.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 8V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 535ns, 205ns |
| -3db Bandwidth | 171MHz |
| Charge Injection | -737pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -73dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-WQFN Exposed Pad, CSP |
| ROHS |  |
ADG5436FBCPZ-RL7.pdf
×
