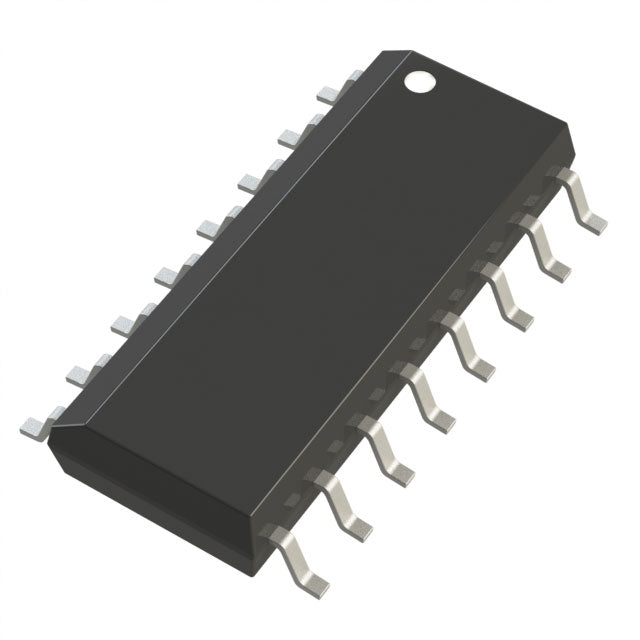

Analog Devices Inc. ADG713BRZ
Regular price
$6.04
Regular price
$6.36
Sale price
$6.04
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.04 | $6.04 |
| 15+ | $5.85 | $87.75 |
| 25+ | $5.72 | $143.00 |
| 50+ | $5.41 | $270.50 |
| 100+ | $4.77 | $477.00 |
| N+ | $0.95 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 11ns, 6ns (Typ) |
| -3db Bandwidth | 200MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
ADG713BRZ.pdf
×
