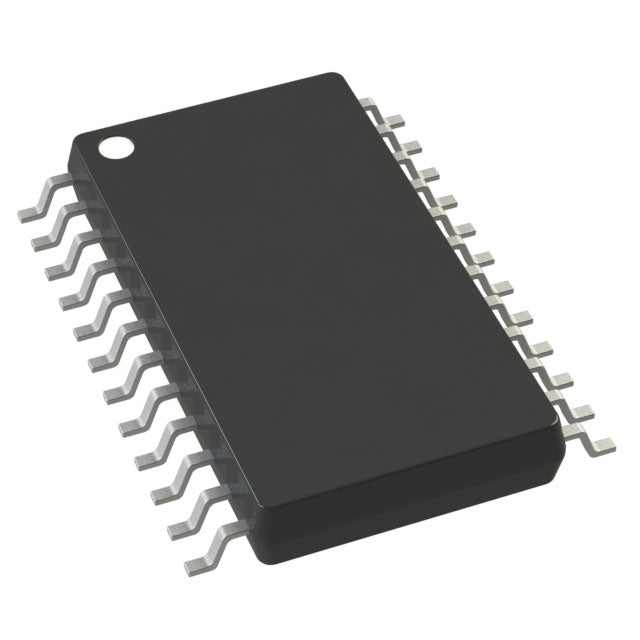

Analog Devices Inc. ADG715BRUZ
Regular price
$8.19
Regular price
$8.62
Sale price
$8.19
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.19 | $8.19 |
| 15+ | $7.93 | $118.95 |
| 25+ | $7.76 | $194.00 |
| 50+ | $7.33 | $366.50 |
| 100+ | $6.47 | $647.00 |
| N+ | $1.29 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 20ns, 8ns (Typ) |
| -3db Bandwidth | 155MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
ADG715BRUZ.pdf
×
