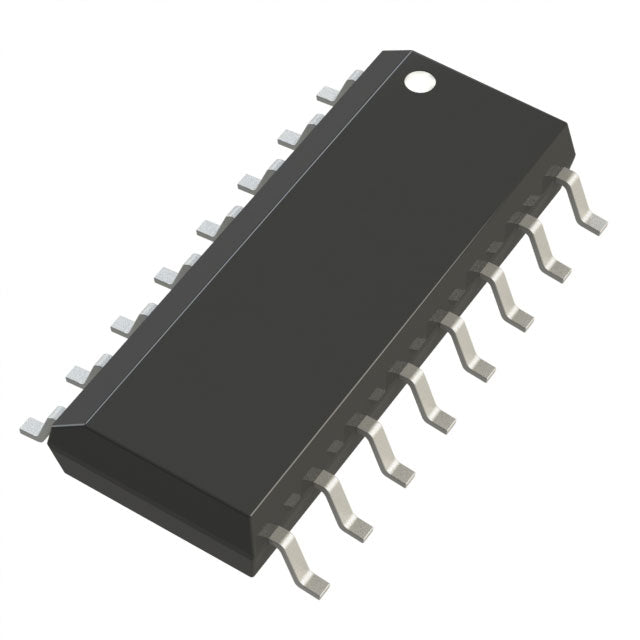

Analog Devices Inc. ADG774BRZ
Regular price
$7.05
Regular price
$7.42
Sale price
$7.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.05 | $7.05 |
| 15+ | $6.83 | $102.45 |
| 25+ | $6.68 | $167.00 |
| 50+ | $6.31 | $315.50 |
| 100+ | $5.57 | $557.00 |
| N+ | $1.11 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 2.2Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 3V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 8ns |
| -3db Bandwidth | 240MHz |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -75dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
ADG774BRZ.pdf
×
