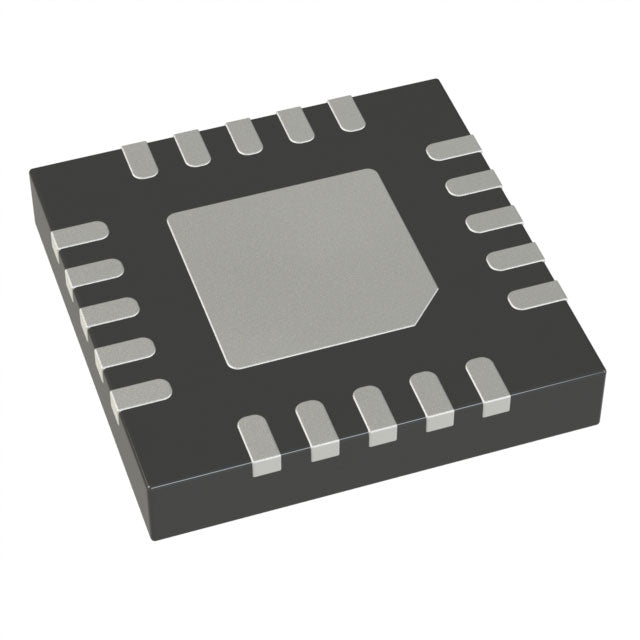

Analog Devices Inc. ADG784BCPZ
Regular price
Dhs. 26.67
Regular price
Dhs. 28.06
Sale price
Dhs. 26.67
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 26.67 | Dhs. 26.67 |
| 15+ | Dhs. 25.82 | Dhs. 387.30 |
| 25+ | Dhs. 25.25 | Dhs. 631.25 |
| 50+ | Dhs. 23.85 | Dhs. 1,192.50 |
| 100+ | Dhs. 21.05 | Dhs. 2,105.00 |
| N+ | Dhs. 4.21 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 2.2Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 3.3V, 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | 240MHz |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -75dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-WFQFN Exposed Pad, CSP |
| ROHS |  |
ADG784BCPZ.pdf
×
