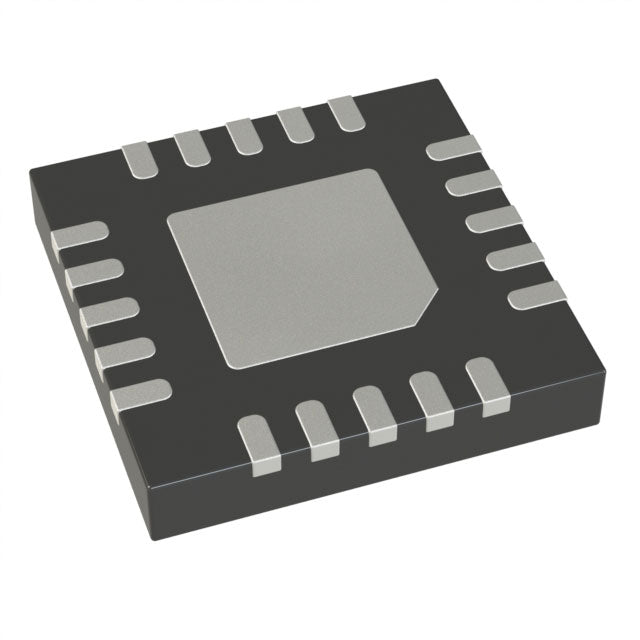

Analog Devices Inc. ADG786BCPZ
Regular price
$4.47
Regular price
$4.71
Sale price
$4.47
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.47 | $4.47 |
| 15+ | $4.33 | $64.95 |
| 25+ | $4.24 | $106.00 |
| 50+ | $4.00 | $200.00 |
| 100+ | $3.53 | $353.00 |
| N+ | $0.71 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 21ns, 10ns (Typ) |
| -3db Bandwidth | 160MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-WFQFN Exposed Pad, CSP |
| ROHS |  |
ADG786BCPZ.pdf
×
