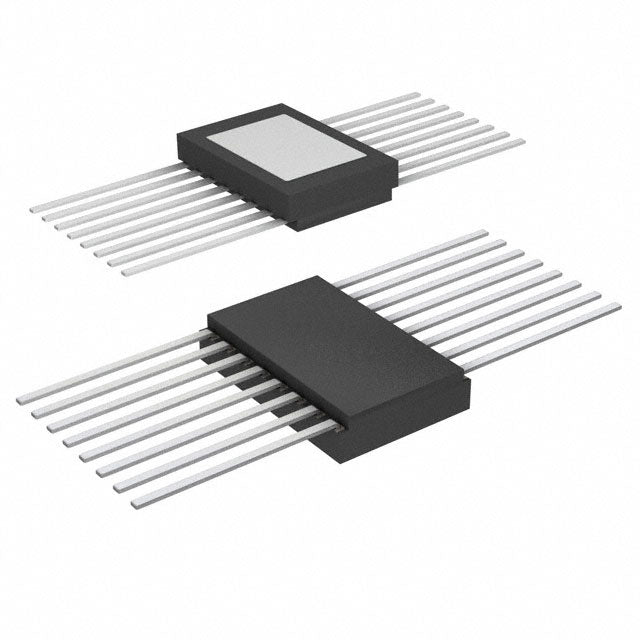

Analog Devices Inc. ADG798HFZ
Regular price
$149.08
Regular price
$156.93
Sale price
$149.08
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $149.08 | $149.08 |
| 15+ | $144.38 | $2,165.70 |
| 25+ | $141.24 | $3,531.00 |
| 50+ | $133.39 | $6,669.50 |
| 100+ | $117.70 | $11,770.00 |
| N+ | $23.54 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.25Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 30ns, 20ns |
| -3db Bandwidth | 55MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 85pF |
| Current - Leakage (IS(off)) (Max) | 180nA |
| Crosstalk | -60dB @ 10MHz |
| Operating Temperature | -55°C ~ 210°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-CFlatPack |
| Supplier Device Package | 16-CFlatPack |
| ROHS |  |
ADG798HFZ.pdf
×
