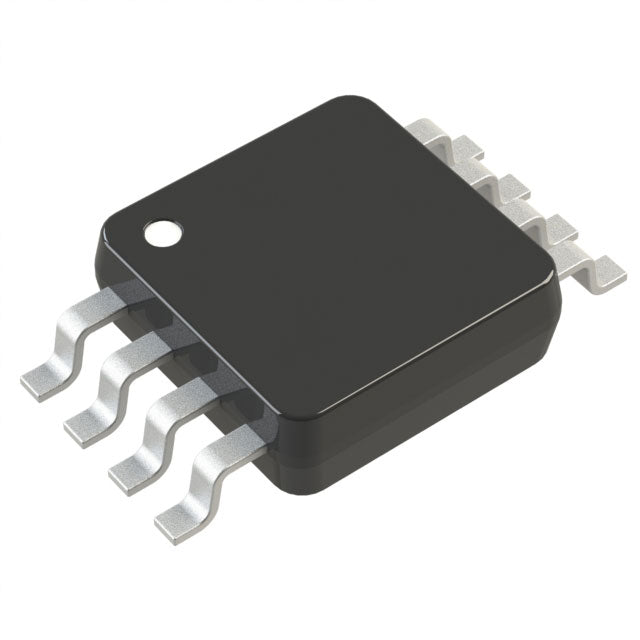

Analog Devices Inc. ADG823BRMZ
Regular price
$5.50
Regular price
$5.79
Sale price
$5.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.50 | $5.50 |
| 15+ | $5.33 | $79.95 |
| 25+ | $5.21 | $130.25 |
| 50+ | $4.92 | $246.00 |
| 100+ | $4.34 | $434.00 |
| N+ | $0.87 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 160mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 45ns, 16ns |
| -3db Bandwidth | 24MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 85pF, 98pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -82dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| ROHS |  |
ADG823BRMZ.pdf
×
