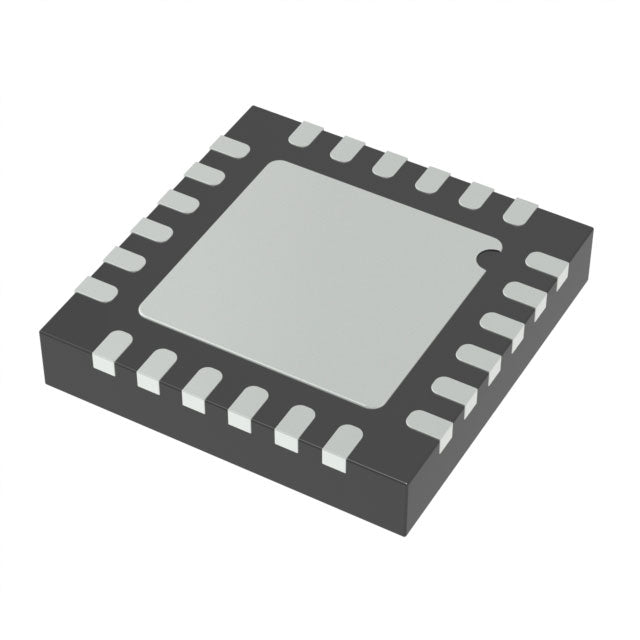

Analog Devices Inc. ADGS1409BCPZ
Regular price
Dhs. 54.47
Regular price
Dhs. 57.36
Sale price
Dhs. 54.47
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 54.47 | Dhs. 54.47 |
| 15+ | Dhs. 52.77 | Dhs. 791.55 |
| 25+ | Dhs. 51.62 | Dhs. 1,290.50 |
| 50+ | Dhs. 48.76 | Dhs. 2,438.00 |
| 100+ | Dhs. 43.02 | Dhs. 4,302.00 |
| N+ | Dhs. 8.60 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 165ns, 155ns |
| -3db Bandwidth | 115MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 40pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-VFQFN Exposed Pad, CSP |
| ROHS |  |
ADGS1409BCPZ.pdf
×
