Analog Devices Inc. ADP165ACBZ-2.3-R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.225V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 2.4 µA |
| Current - Supply (Max) | 6.2 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-WFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.96x0.96) |

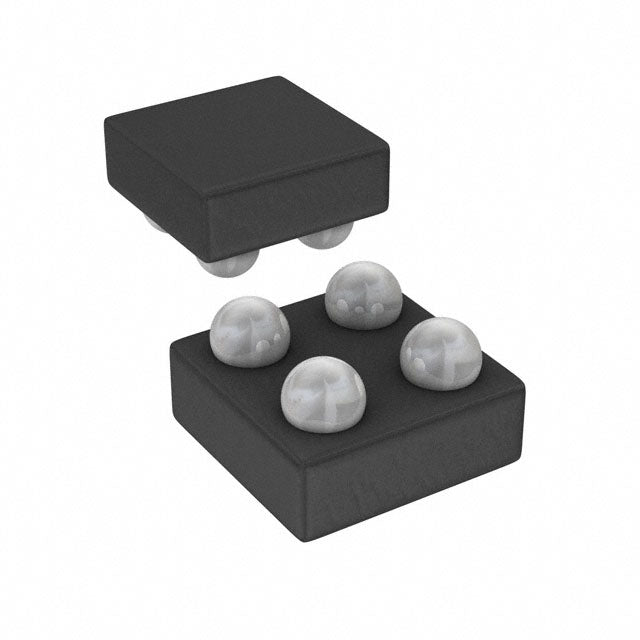

The ADP165ACBZ-2.3-R7 is an ultra-low quiescent current LDO from Analog Devices, delivering a fixed 2.3V output at up to 150mA. With a remarkable 2.4 µA quiescent current and a tiny 4-WLCSP (0.96x0.96) package, it is engineered for battery-powered and energy-harvesting applications where power efficiency and space are paramount. The low dropout of 0.225V ensures reliable operation even with minimal input headroom.
- Ultra-Low Quiescent Current (2.4 µA): Dramatically extends battery life in standby and always-on applications.
- Minuscule 0.96x0.96mm WLCSP: Occupies minimal PCB area, ideal for space-constrained designs.
- Low Dropout (0.225V @ 150mA): Maintains regulation with very low input-to-output voltage difference.
- Stable 2.3V Output: Provides a precise rail for low-power microcontrollers and sensors.
Ultra-Low-Power Wearable Devices
The 2.4 µA quiescent current is ideal for smartwatches, fitness bands, and medical patches, dramatically extending battery life in always-on applications.
Energy-Harvesting Systems
Power microcontrollers and sensors in energy-harvesting nodes where every microamp matters, ensuring efficient operation from solar or thermal sources.
IoT Sensor Nodes
Provide a stable 2.3V rail for wireless sensors that spend most of their time in sleep mode, minimizing standby power draw.
Coin-Cell Battery Applications
The tiny 0.96x0.96mm WLCSP package and ultra-low quiescent current make it perfect for coin-cell-powered devices like remote controls and electronic tags.
Real-Time Clock (RTC) Backup Power
Maintain RTC operation with minimal current drain, preserving timekeeping functions in systems with intermittent main power.
Portable Medical Monitors
Power continuous glucose monitors or heart rate sensors with minimal battery drain, enabling longer wear time and patient comfort.
- Q: What is the output voltage of the ADP165ACBZ-2.3-R7?
- A: It provides a fixed output voltage of 2.3V.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.225V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is extremely low at 2.4 µA.
- Q: What package is available?
- A: It comes in a 4-WLCSP (0.96x0.96) package.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
