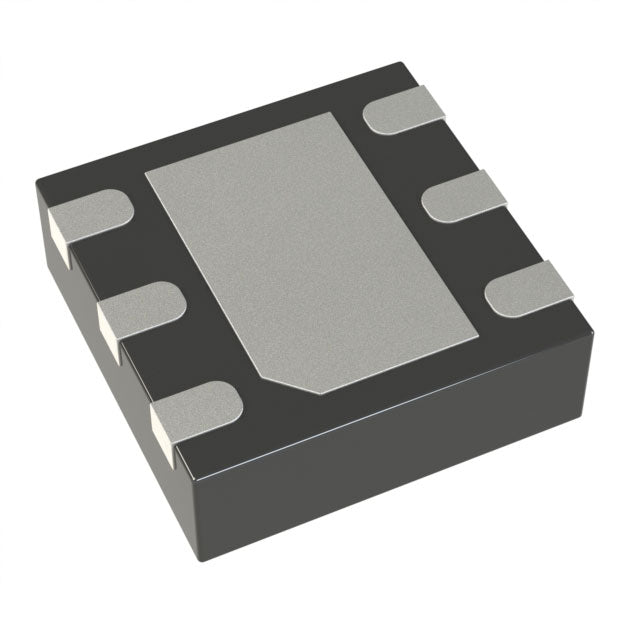

Analog Devices Inc. ADP165ACPZN-1.2-R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 2.4 µA |
| Current - Supply (Max) | 6.2 µA |
| PSRR | 72dB ~ 62dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad, CSP |
| Supplier Device Package | 6-LFCSP-UD (2x2) |
The ADP165ACPZN-1.2-R7 is an ultra-low quiescent current LDO from Analog Devices, providing a fixed 1.2V output at up to 150mA. It features an exceptional 2.4 µA quiescent current and strong PSRR (72dB at 100Hz, 62dB at 1kHz), making it ideal for noise-sensitive, battery-powered applications. Housed in a compact 6-LFCSP-UD (2x2) package, this regulator delivers clean, stable power for low-voltage digital and analog circuits.
- Ultra-Low Quiescent Current (2.4 µA): Maximizes battery life in portable and always-on devices.
- Excellent Low-Frequency PSRR (72dB @ 100Hz): Filters mains and switching noise, ensuring clean power for sensitive circuits.
- Compact 2x2mm Package: Saves board space while providing robust thermal performance.
- Stable 1.2V Output: Ideal for modern low-voltage digital cores and analog circuits.
Low-Voltage Digital Core Supply
Power 1.2V digital cores in MCUs, DSPs, and FPGAs with high efficiency and excellent low-frequency noise rejection, ensuring stable operation.
Battery-Powered IoT Devices
The 2.4 µA quiescent current is perfect for battery-operated sensors and trackers, extending operational life between charges.
Noise-Sensitive Analog Front-Ends
With 72dB PSRR at 100Hz, it effectively filters mains-frequency noise, making it suitable for precision analog measurement circuits.
Portable Audio Players
Provide a clean 1.2V rail for low-voltage audio codecs and amplifiers, reducing hum and improving sound quality.
Wearable Health Monitors
The compact 2x2mm package and ultra-low quiescent current make it ideal for continuous health monitoring devices that require long battery life.
Energy-Harvesting Wireless Nodes
Power low-voltage microcontrollers in energy-harvesting systems, where minimal power consumption is critical for sustainable operation.
- Q: What is the output voltage of the ADP165ACPZN-1.2-R7?
- A: It provides a fixed output voltage of 1.2V.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the quiescent current?
- A: The quiescent current is 2.4 µA.
- Q: What is the PSRR performance?
- A: PSRR is 72dB at 100Hz and 62dB at 1kHz, providing excellent low-frequency noise rejection.
- Q: What package is available?
- A: It comes in a 6-LFCSP-UD (2x2) package.
- Q: What is the dropout voltage?
- A: The dropout voltage is not specified in the provided data; refer to the datasheet.
