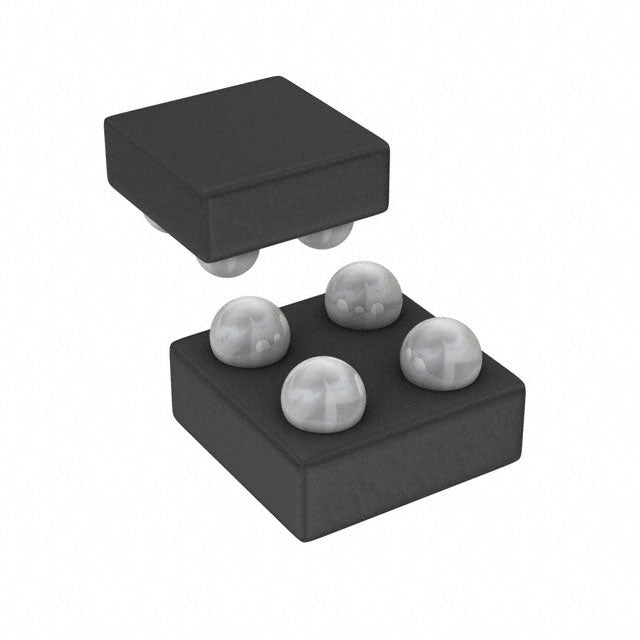

Analog Devices Inc. ADP172ACBZ-1.5-R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 60 µA |
| Current - Supply (Max) | 260 nA |
| PSRR | 73dB ~ 47dB (1kHz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.95x1.03) |
The ADP172ACBZ-1.5-R7 is a low dropout linear regulator from Analog Devices, providing a fixed 1.5V output at up to 300mA. It features an ultra-low 60µA quiescent current and high PSRR of 73dB at 1kHz, making it ideal for noise-sensitive portable applications. The 4-WLCSP package is one of the smallest available, perfect for miniaturized designs.
- Ultra-Small Package: 4-WLCSP (0.95x1.03mm) enables miniaturized product designs.
- Low Quiescent Current: 60µA maximizes battery life in portable devices.
- High PSRR: 73dB at 1kHz ensures clean power for sensitive analog and RF circuits.
- Fixed 1.5V Output: Ideal for low-voltage digital and analog ICs.
Ultra-Compact Wearables
The tiny 4-WLCSP package (0.95x1.03mm) is ideal for smartwatches, earbuds, and fitness bands where PCB space is extremely limited.
Mobile Phone Auxiliary Rails
Provides a stable 1.5V rail for camera sensors, display drivers, and SIM card interfaces in smartphones.
MEMS Sensor Power
Low quiescent current and high PSRR (73dB at 1kHz) ensure clean power for accelerometers and gyroscopes in IoT devices.
Portable Medical Patches
The small footprint and low power consumption make it suitable for wearable health monitors that require long battery life.
RF Transceiver Modules
Powers low-voltage RF front-ends in Bluetooth Low Energy and Zigbee modules, maintaining signal integrity with high PSRR.
- Q: What is the output voltage?
- A: The fixed output voltage is 1.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the quiescent current?
- A: Quiescent current is 60µA.
- Q: What is the PSRR performance?
- A: PSRR is 73dB at 1kHz and 47dB at 100kHz.
- Q: What package is available?
- A: It comes in a 4-WLCSP (0.95x1.03) package.
