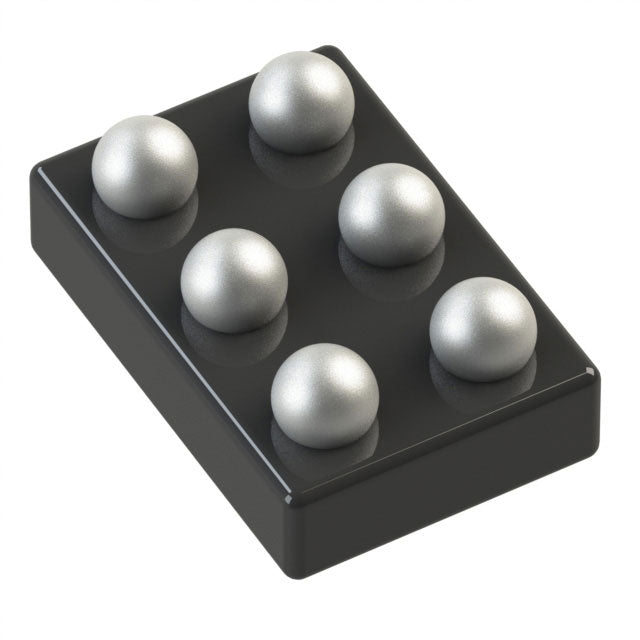

Analog Devices Inc. ADP196ACBZ-R7
Regular price
$2.62
Regular price
$2.76
Sale price
$2.62
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.62 | $2.62 |
| 15+ | $2.54 | $38.10 |
| 25+ | $2.48 | $62.00 |
| 50+ | $2.35 | $117.50 |
| 100+ | $2.07 | $207.00 |
| N+ | $0.41 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 10mOhm |
| nput Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.45x0.95) |
| ROHS |  |
ADP196ACBZ-R7.pdf
×
