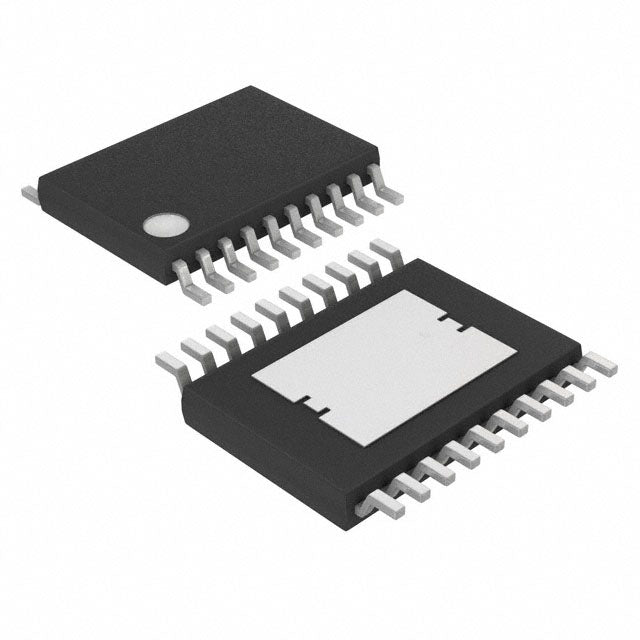

Analog Devices Inc. ADP5070AREZ
Regular price
$8.35
Regular price
$8.79
Sale price
$8.35
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.35 | $8.35 |
| 15+ | $8.09 | $121.35 |
| 25+ | $7.91 | $197.75 |
| 50+ | $7.47 | $373.50 |
| 100+ | $6.59 | $659.00 |
| N+ | $1.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive and Negative (Dual Rail) |
| Topology | Boost, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.85V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0.8V, 1.6V |
| Voltage - Output (Max) | ±39V |
| Current - Output | 600mA, 1A |
| Frequency - Switching | 1.2MHz, 2.4MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| ROHS |  |
ADP5070AREZ.pdf
×
