Analog Devices Inc. ADP5076ACBZ-R7
Regular price
$7.32
Regular price
$7.71
Sale price
$7.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.32 | $7.32 |
| 15+ | $7.09 | $106.35 |
| 25+ | $6.94 | $173.50 |
| 50+ | $6.55 | $327.50 |
| 100+ | $5.78 | $578.00 |
| N+ | $1.16 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Up |
| Output Configuration | Positive and Negative |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.85V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 35V, -30V |
| Current - Output | 2A (Switch), 1.2A (Switch) |
| Frequency - Switching | 1.2MHz, 2.4MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

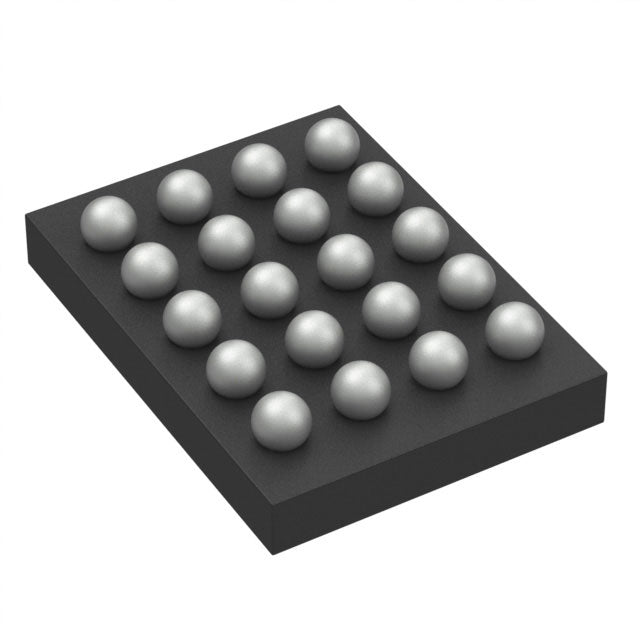

| Package / Case | 20-UFBGA, WLCSP |
| Supplier Device Package | 20-WLCSP (1.61x2.18) |
| ROHS |  |
ADP5076ACBZ-R7.pdf
×
