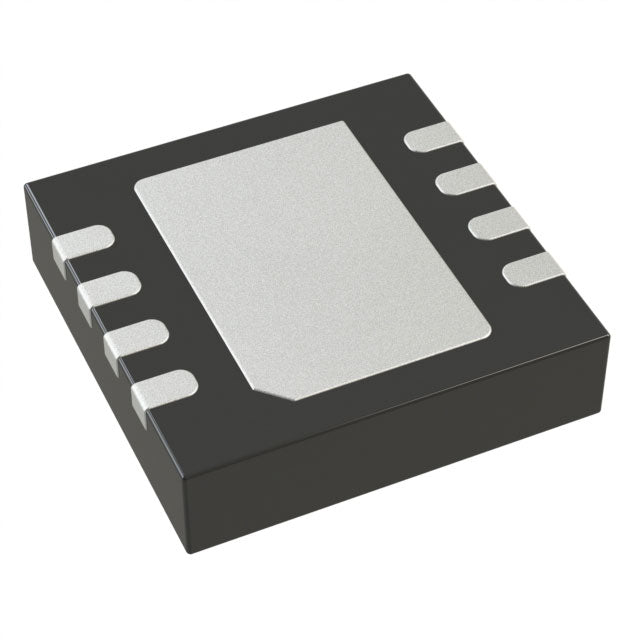

Analog Devices Inc. ADP7105ACPZ-R2
Regular price
$5.26
Regular price
$5.54
Sale price
$5.26
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.26 | $5.26 |
| 15+ | $5.10 | $76.50 |
| 25+ | $4.99 | $124.75 |
| 50+ | $4.71 | $235.50 |
| 100+ | $4.16 | $416.00 |
| N+ | $0.83 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 19V |
| Voltage Dropout (Max) | 0.55V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 900 µA |
| Current - Supply (Max) | 1.6 mA |
| PSRR | 80dB ~ 50dB (10kHz ~ 100kHz) |
| Control Features | Enable, Power Good, Under Voltage Lockout |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| ROHS |  |
ADP7105ACPZ-R2.pdf
×
