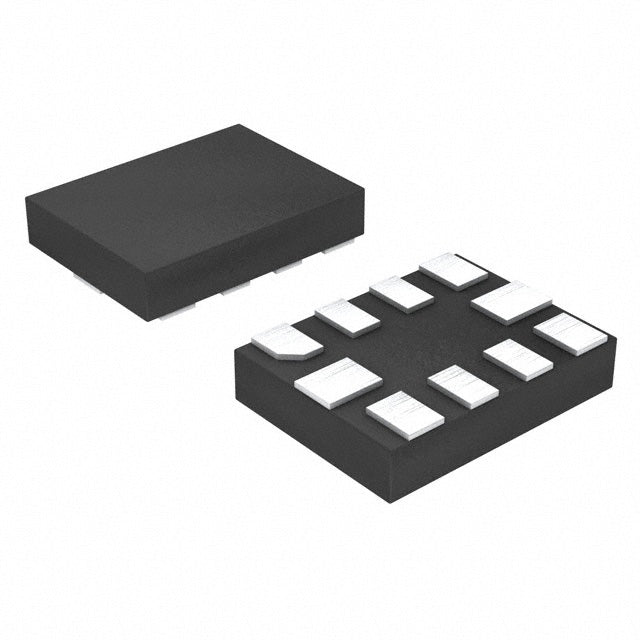

Texas Instruments ADS1013IRUGR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.28 | $2.28 |
| 15+ | $2.21 | $33.15 |
| 25+ | $2.16 | $54.00 |
| 50+ | $2.04 | $102.00 |
| 100+ | $1.80 | $180.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 3.3k |
| Number of Inputs | 1, 2 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-XFQFN |
| Supplier Device Package | 10-X2QFN (2x1.5) |
| ROHS |  |
The ADS1013IRUGR is a 12-bit, 3.3k SPS analog-to-digital converter from Texas Instruments. It features a configurable 1 or 2 channel input and an internal voltage reference, simplifying design. The I2C interface allows easy connection to microcontrollers and processors. Housed in a compact 10-XFQFN package, it operates over -40°C to 125°C, making it suitable for industrial, consumer, and medical applications where space and power are critical.
- Integrated Reference: Internal reference reduces external component count and simplifies design.
- Flexible Inputs: Configurable 1 or 2 channels provide design flexibility.
- Low Power: Ideal for battery-powered and energy-harvesting applications.
- I2C Interface: Standard interface compatible with most microcontrollers.
- Compact Package: 10-XFQFN saves valuable PCB space.
Battery Monitoring
The ADS1013IRUGR's low power consumption and I2C interface make it suitable for battery voltage and current monitoring in portable devices.
Temperature Sensing
With its internal reference and 12-bit resolution, it can accurately digitize temperature sensor outputs for HVAC and environmental monitoring.
Industrial Automation
The wide temperature range and small package allow integration into industrial control systems for analog signal acquisition.
Consumer Electronics
Its compact size and I2C compatibility make it ideal for smart home devices, wearables, and other consumer electronics requiring analog-to-digital conversion.
Power Management
The ADC can be used in power supply monitoring circuits to measure output voltages and currents with high accuracy.
Medical Instruments
Its precision and small footprint support medical devices like glucose meters and pulse oximeters.
- Q: What is the ADS1013IRUGR?
- A: It is a 12-bit analog-to-digital converter (ADC) from Texas Instruments with an internal reference.
- Q: What is the sampling rate?
- A: The sampling rate is 3.3k SPS (samples per second).
- Q: How many channels does it support?
- A: It supports 1 or 2 input channels (configurable).
- Q: What interface does it use?
- A: It uses the I2C interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
- Q: What package is it available in?
- A: It comes in a 10-XFQFN package.
