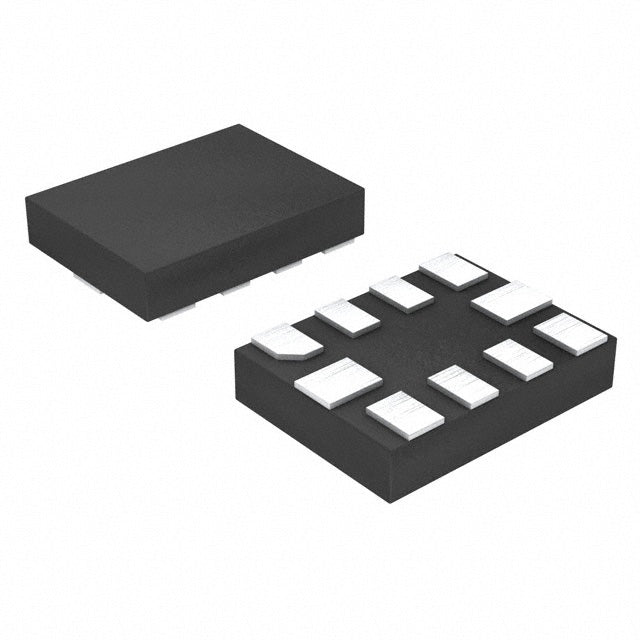

Texas Instruments ADS1014IRUGR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.38 | $2.38 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 3.3k |
| Number of Inputs | 1, 2 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-XFQFN |
| Supplier Device Package | 10-X2QFN (2x1.5) |
| ROHS |  |
The ADS1014IRUGR from Texas Instruments is a 12-bit Analog-to-Digital Converter (ADC) offering a 3.3 kSPS sampling rate. It integrates a MUX-PGA-ADC architecture with an internal reference, supporting 1 or 2 input channels. The device communicates via the I2C interface and is housed in a compact 10-XFQFN package. With an operating temperature range of -40°C to +125°C, it is well-suited for portable, industrial, and automotive applications where space, power, and accuracy are critical.
- Ultra-Small Package: The 10-XFQFN package is ideal for miniaturized designs, enabling high-density PCB layouts.
- Integrated PGA and Reference: Simplifies design by reducing external components, improving reliability and reducing BOM cost.
- Low Power Consumption: Extends battery life in portable and wireless applications.
- I2C Interface: Easy integration with standard microcontrollers, requiring only two wires for communication.
- Wide Temperature Range: Ensures reliable operation in extreme environmental conditions.
Compact IoT Sensor Nodes
The ultra-small 10-XFQFN package makes the ADS1014IRUGR perfect for space-constrained IoT devices, enabling precise sensor data acquisition in smart home and industrial wireless nodes.
Battery-Powered Medical Devices
Its low power consumption and internal reference make it ideal for portable medical monitors, such as wearable health trackers and handheld diagnostic tools, ensuring long battery life.
Industrial Sensor Interfaces
The wide temperature range and PGA allow for accurate digitization of industrial sensors like thermocouples and strain gauges, even in noisy environments.
Multi-Channel Data Logging
With its 1 or 2 channel input and I2C interface, it can be easily used in data logging systems to monitor multiple analog signals sequentially.
Automotive Electronics
The -40°C to +125°C operating range makes it suitable for automotive sensor applications, including tire pressure monitoring and battery management systems.
Precision Measurement Equipment
The 12-bit resolution and internal reference provide the accuracy needed for laboratory and field measurement instruments, such as digital multimeters and environmental testers.
- Q: What is the resolution of the ADS1014IRUGR?
- A: The ADS1014IRUGR is a 12-bit Analog-to-Digital Converter (ADC).
- Q: What is the sampling rate?
- A: It has a sampling rate of 3.3 kSPS.
- Q: How many channels does it support?
- A: It supports 1 or 2 input channels via an internal multiplexer.
- Q: What interface does it use?
- A: It uses the I2C interface for communication.
- Q: What is the architecture?
- A: It features a MUX-PGA-ADC architecture with an internal reference.
- Q: What package is available?
- A: It is available in a 10-XFQFN package.
