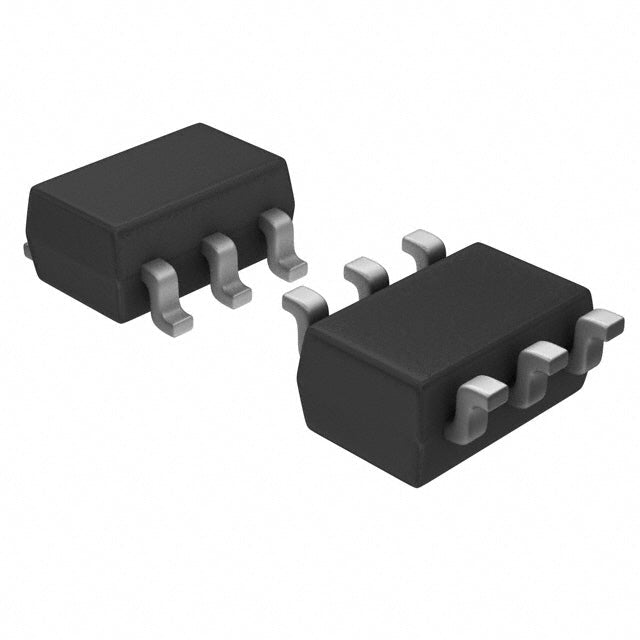

Texas Instruments ADS1100A1IDBVR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 128 |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
The ADS1100A1IDBVR is a 16-bit, 1-channel Analog-to-Digital Converter (ADC) from Texas Instruments. It features a delta-sigma architecture with a programmable gain amplifier (PGA) and an I2C interface. With a sampling rate of 128 SPS, it is designed for low-speed, high-precision applications. The device operates from a supply voltage and comes in a compact SOT-23-6 package, making it ideal for portable and space-constrained designs.
- 16-Bit High Resolution: Provides excellent accuracy for demanding measurement applications.
- Integrated PGA: Allows direct connection to sensors with small output signals, simplifying the analog front end.
- I2C Interface: Requires only two pins for communication, reducing wiring complexity.
- Small Form Factor: The SOT-23-6 package is ideal for miniaturized electronic devices.
- Low Power Consumption: Suitable for battery-powered applications, extending operational life.
Precision Temperature Sensing
The 16-bit resolution and PGA make it ideal for reading thermocouples or RTDs with high accuracy in industrial temperature controllers.
Battery Monitoring
Used in battery management systems to monitor voltage and current with high precision, extending battery life.
Portable Consumer Electronics
Its small SOT-23-6 package and low power consumption make it suitable for wearable devices and smart home sensors.
Medical Instrumentation
Can be used in blood pressure monitors or pulse oximeters where precise analog signal conversion is required.
Environmental Sensors
Ideal for air quality monitors or weather stations to digitize outputs from gas or humidity sensors.
- Q: What is the ADS1100A1IDBVR?
- A: It is a 16-bit, 1-channel, delta-sigma ADC from Texas Instruments with an I2C interface.
- Q: What is the resolution?
- A: It offers 16-bit resolution for high-precision measurements.
- Q: What is the sampling rate?
- A: The sampling rate is 128 SPS, suitable for low-speed, high-accuracy applications.
- Q: How many channels does it have?
- A: It has a single input channel with a programmable gain amplifier (PGA).
- Q: What interface does it use?
- A: It uses the I2C interface for communication.
- Q: What is the package?
- A: It is available in a small SOT-23-6 package.
