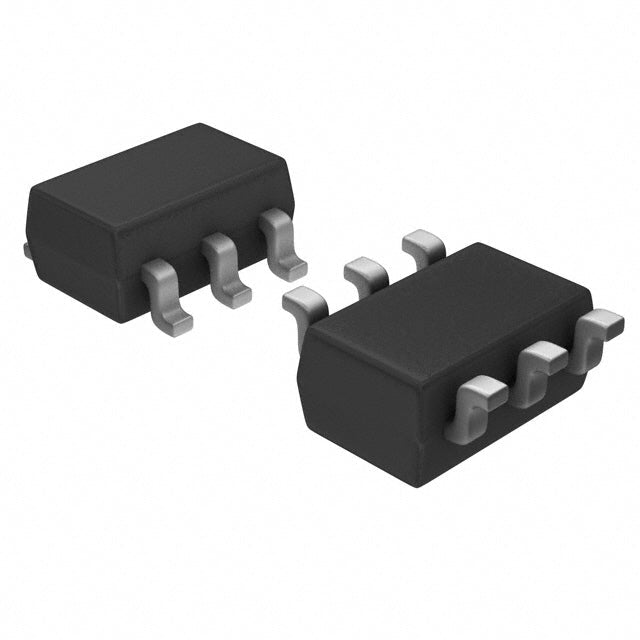

Texas Instruments ADS1110A1IDBVR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 240 |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
The ADS1110A1IDBVR is a 16-bit, 1-channel Analog-to-Digital Converter (ADC) from Texas Instruments. It features a delta-sigma architecture, an internal voltage reference, and a programmable gain amplifier (PGA). With a sampling rate of 240 SPS and an I2C interface, it is designed for a wide range of precision measurement applications. The device comes in a small SOT-23-6 package and operates over a temperature range of -40°C to 125°C.
- 16-Bit Resolution: Delivers high accuracy for precise measurement and control systems.
- Internal Reference: Eliminates the need for an external reference, reducing component count and cost.
- Higher Sampling Rate (240 SPS): Allows for faster data acquisition compared to similar low-power ADCs.
- I2C Interface: Simplifies integration with standard microcontrollers and reduces pin usage.
- Wide Temperature Range: Operates reliably from -40°C to 125°C, suitable for harsh environments.
Industrial Process Monitoring
The 16-bit resolution and 240 SPS sampling rate make it suitable for monitoring industrial process variables like pressure and flow.
Smart Agriculture
Used in soil moisture sensors and weather stations to digitize analog sensor outputs for precision farming.
Energy Harvesting Systems
Its low power consumption and internal reference make it ideal for energy-harvesting applications where power is limited.
Consumer Appliances
Can be used in smart appliances like washing machines or refrigerators for sensor-based control.
Educational Kits
Its ease of use and I2C interface make it a great choice for educational electronics projects and prototyping.
- Q: What is the ADS1110A1IDBVR?
- A: It is a 16-bit, 1-channel, delta-sigma ADC from Texas Instruments with an internal reference and I2C interface.
- Q: What is the resolution?
- A: It provides 16-bit resolution for high-precision analog-to-digital conversion.
- Q: What is the sampling rate?
- A: The sampling rate is 240 SPS, offering a balance between speed and accuracy.
- Q: How many channels does it have?
- A: It has a single input channel with a programmable gain amplifier (PGA).
- Q: What interface does it use?
- A: It uses the I2C interface for communication.
- Q: What is the package?
- A: It is available in a compact SOT-23-6 package.
