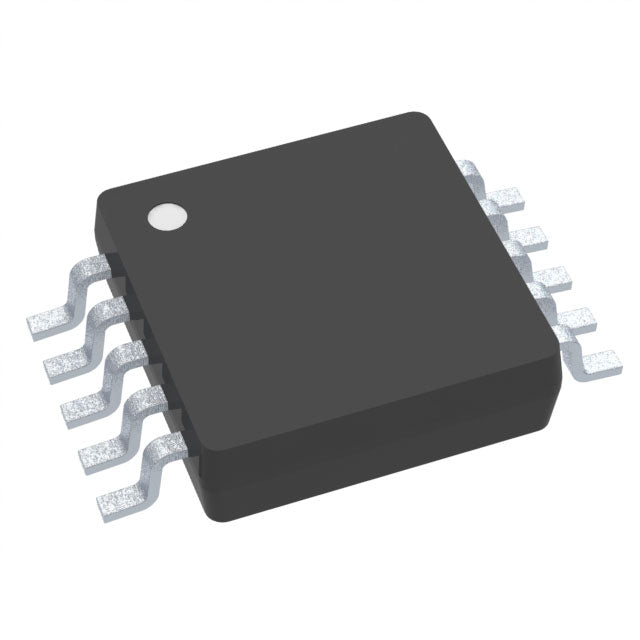

Texas Instruments ADS1115IDGSR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.16 | $4.16 |
| 15+ | $4.03 | $60.45 |
| 25+ | $3.94 | $98.50 |
| 50+ | $3.72 | $186.00 |
| 100+ | $3.29 | $329.00 |
| N+ | $0.66 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 860 |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| ROHS |  |
The Texas Instruments ADS1115IDGSR is a precision, 16-bit analog-to-digital converter (ADC) with an integrated multiplexer and programmable gain amplifier (PGA). It features a maximum sampling rate of 860 SPS and communicates via a standard I2C interface. The device can be configured for 2 or 4 input channels, providing flexibility for various applications. Its low power consumption, small MSOP package, and wide operating temperature range make it an excellent choice for portable, industrial, and consumer applications.
- High Resolution: 16-bit resolution provides excellent accuracy for precision measurement applications.
- Integrated PGA: The programmable gain amplifier allows for amplification of small signals, eliminating the need for external amplification circuitry.
- Flexible Input Configuration: Supports 2 or 4 input channels, configurable via I2C, offering design flexibility.
- Low Power Consumption: Ideal for battery-powered and portable applications.
Precision Sensor Measurement
The 16-bit resolution and integrated PGA make the ADS1115IDGSR ideal for precise measurement of small signals from sensors like thermocouples, strain gauges, and RTDs.
Portable Health Monitors
Its low power consumption and small package make it suitable for wearable health devices like pulse oximeters and fitness trackers.
Environmental Monitoring
It can be used in weather stations and environmental monitoring systems to accurately measure temperature, humidity, and pressure.
Industrial Process Control
With its wide temperature range and high resolution, it is suitable for industrial process control and monitoring applications.
Battery-Powered Data Loggers
The low power consumption and I2C interface make it easy to integrate into battery-powered data loggers for long-term monitoring.
Home Automation
It can be used in smart home devices for monitoring temperature, light, and other analog signals.
- Q: What is the resolution of the ADS1115IDGSR?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: The ADS1115IDGSR supports a sampling rate of 860 SPS.
- Q: How many input channels does it have?
- A: It has 2 or 4 input channels, configurable via the I2C interface.
- Q: What digital interface does it use?
- A: It communicates via the I2C interface.
- Q: What is the architecture of this ADC?
- A: It uses a delta-sigma architecture with an integrated multiplexer and programmable gain amplifier (MUX-PGA-ADC).
- Q: What is the operating temperature range?
- A: It is specified for operation from -40°C to 125°C.
