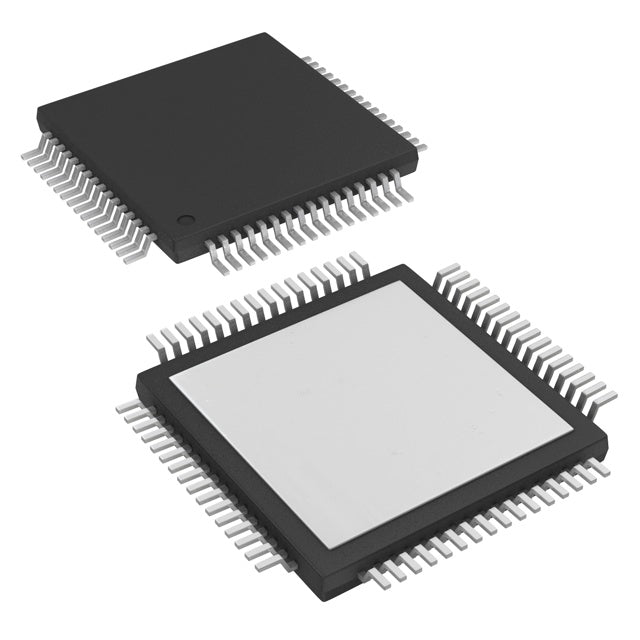

Texas Instruments ADS2807Y/1K5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $116.84 | $116.84 |
| 15+ | $26.87 | $403.05 |
| 25+ | $26.29 | $657.25 |
| 50+ | $24.83 | $1,241.50 |
| 100+ | $21.91 | $2,191.00 |
| N+ | $4.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) |
| ROHS |  |
The ADS2807Y/1K5 is a high-performance, dual-channel, 12-bit analog-to-digital converter from Texas Instruments, engineered for demanding high-speed applications. With a sampling rate of 50 MSPS, it delivers exceptional dynamic performance for digitizing fast analog signals. Its parallel interface ensures efficient data transfer to FPGAs and DSPs. This ADC is well-suited for a wide range of applications, including communications, medical imaging, and industrial data acquisition, where high speed and precision are critical.
- High-Speed Performance: The 50 MSPS sampling rate enables the digitization of high-frequency signals, making it suitable for advanced communication and radar systems.
- Dual-Channel Integration: Two synchronized ADC channels in one package reduce board space and simplify system design for I/Q or stereo signal processing.
- Robust Temperature Range: Operating from -40°C to 85°C, it ensures reliable performance in harsh industrial environments.
- Flexible Reference Options: Support for both external and internal references provides design flexibility to optimize for accuracy or simplicity.
High-Speed Data Acquisition
The 50 MSPS sampling rate and 12-bit resolution make it ideal for digitizing high-frequency signals in data acquisition systems, ensuring accurate capture of fast transient events.
Medical Imaging Systems
In ultrasound and other medical imaging equipment, the dual channels and high speed allow for simultaneous processing of I/Q signals, improving image quality and frame rates.
Communications Infrastructure
For base stations and software-defined radios, the ADS2807Y/1K5's parallel interface and high throughput support direct IF sampling, simplifying receiver designs.
Industrial Automation
In high-speed industrial control loops, this ADC's fast conversion time enables real-time monitoring and feedback for precision motor control and robotics.
Test and Measurement Equipment
Digital oscilloscopes and spectrum analyzers benefit from the 12-bit resolution and 50 MSPS rate, providing the dynamic range and bandwidth needed for accurate signal analysis.
Radar and Lidar Systems
The dual-channel capability and high sampling rate are suitable for processing in-phase and quadrature components in radar systems, enhancing target detection and ranging accuracy.
- Q: What is the resolution of the ADS2807Y/1K5?
- A: The ADS2807Y/1K5 is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It features a high-speed sampling rate of 50 MSPS (Mega Samples Per Second).
- Q: How many channels does the ADS2807Y/1K5 have?
- A: This ADC has 2 input channels.
- Q: What interface does the ADS2807Y/1K5 use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture of this ADC?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for the ADS2807Y/1K5?
- A: It comes in a 64-PowerTQFP package.
