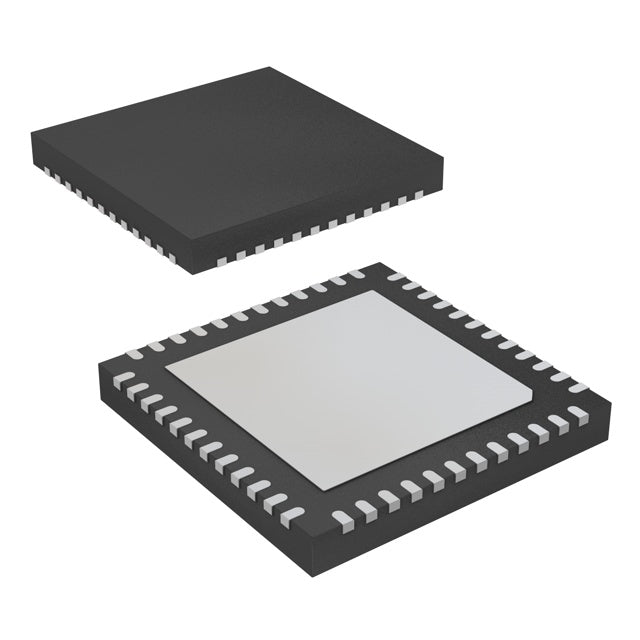

Texas Instruments ADS41B29IRGZR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $191.89 | $191.89 |
| 15+ | $44.13 | $661.95 |
| 25+ | $43.17 | $1,079.25 |
| 50+ | $40.77 | $2,038.50 |
| 100+ | $35.98 | $3,598.00 |
| N+ | $7.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 250M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| ROHS |  |
The Texas Instruments ADS41B29IRGZR is a high-performance, 12-bit analog-to-digital converter designed for demanding high-speed applications. With a sampling rate of 250 MSPS and a single input channel, it delivers exceptional dynamic performance. The device features both LVDS and parallel output interfaces, providing design flexibility. Its internal reference simplifies circuit design, while the compact 48-VFQFN package is suitable for space-constrained systems. This ADC is well-suited for applications including wireless communications, test and measurement, and medical imaging.
- High-Speed Sampling: The 250 MSPS sampling rate enables the digitization of fast-moving signals, making it perfect for high-bandwidth applications.
- Flexible Output Interface: Offers both LVDS and parallel outputs, allowing designers to choose the best interface for their system architecture.
- Integrated Reference: The internal reference reduces external component count, simplifying design and saving board space.
- Compact Package: The 48-VFQFN package is ideal for space-limited designs without compromising performance.
High-Speed Data Acquisition
The 250 MSPS sampling rate and 12-bit resolution make the ADS41B29IRGZR ideal for high-speed data acquisition systems, such as radar and lidar, where capturing fast transient signals with high fidelity is critical.
Wireless Communications Infrastructure
In cellular base stations and software-defined radios, this ADC digitizes IF signals directly. Its high sample rate and LVDS interface support wideband signal processing for 4G and 5G applications.
Medical Imaging Systems
For ultrasound and MRI equipment, the high-speed conversion capability enables the capture of detailed images. The parallel interface allows for high-throughput data transfer to processing units.
Test and Measurement Equipment
Digital oscilloscopes and spectrum analyzers benefit from the ADS41B29's high bandwidth and sample rate, allowing for accurate measurement of high-frequency signals and transient events.
Industrial Automation and Control
In high-speed industrial inspection systems, this ADC digitizes signals from sensors and cameras, enabling real-time process control and quality assurance with high precision.
- Q: What is the resolution of the ADS41B29IRGZR?
- A: The ADS41B29IRGZR is a 12-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: It supports a high-speed sampling rate of 250 MSPS (Mega Samples Per Second).
- Q: How many input channels does it have?
- A: This ADC features a single input channel.
- Q: What digital interfaces are available?
- A: It offers both LVDS and Parallel digital output interfaces for flexible system integration.
- Q: What is the architecture of this ADC?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the operating temperature range?
- A: It is specified for operation from -40°C to 85°C.
