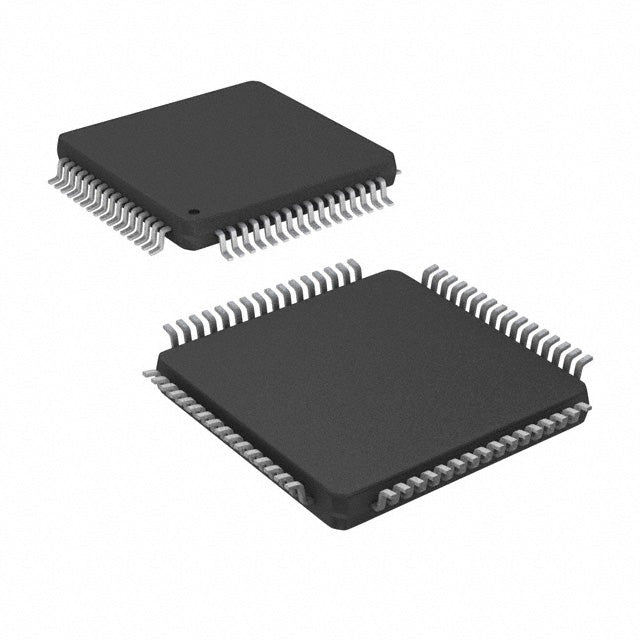

Texas Instruments ADS5232IPAG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $121.12 | $121.12 |
| 15+ | $27.86 | $417.90 |
| 25+ | $27.25 | $681.25 |
| 50+ | $25.74 | $1,287.00 |
| 100+ | $22.71 | $2,271.00 |
| N+ | $4.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 65M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-TQFP |
| Supplier Device Package | 64-TQFP (10x10) |
| ROHS |  |
The ADS5232IPAG from Texas Instruments is a high-performance 12-bit, 65 MSPS dual-channel analog-to-digital converter. It features a parallel interface and a sample-and-hold architecture, ensuring efficient data transfer and accurate signal capture. With support for both external and internal references and a wide temperature range, this ADC is well-suited for demanding applications such as communications, medical imaging, and industrial data acquisition.
- High-Speed Conversion: 65 MSPS sampling rate enables digitization of fast signals, ideal for high-bandwidth applications.
- Dual-Channel Synchronization: Two ADC cores on one chip ensure matched performance for I/Q or stereo applications.
- Flexible Reference Options: Supports both external and internal references, simplifying system design.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial environments.
High-Speed Data Acquisition Systems
The 65 MSPS sampling rate and 12-bit resolution make the ADS5232IPAG ideal for digitizing high-frequency signals in data acquisition systems, ensuring accurate capture of fast transients.
Dual-Channel I/Q Demodulation
With 2 synchronized channels, this ADC is perfect for I/Q demodulation in communication receivers, maintaining phase coherence between the in-phase and quadrature signals.
Medical Imaging Equipment
The high-speed parallel output and 12-bit precision support ultrasound and other medical imaging modalities where rapid, accurate signal conversion is critical.
Radar and Lidar Systems
Its wide operating temperature range (-40°C to 85°C) and high sampling rate enable reliable digitization of return pulses in radar and lidar applications.
Industrial Automation Control
The dual channels allow simultaneous monitoring of two sensors (e.g., current and voltage) in industrial motor drives, enabling precise real-time control.
Test and Measurement Equipment
As a building block in oscilloscopes and spectrum analyzers, the ADS5232IPAG provides the necessary speed and resolution for accurate signal analysis.
- Q: What is the resolution of the ADS5232IPAG?
- A: The ADS5232IPAG is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a maximum sampling rate of 65 MSPS (65M samples per second).
- Q: How many channels does it have?
- A: This ADC features 2 input channels.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It is available in a 64-TQFP package.
