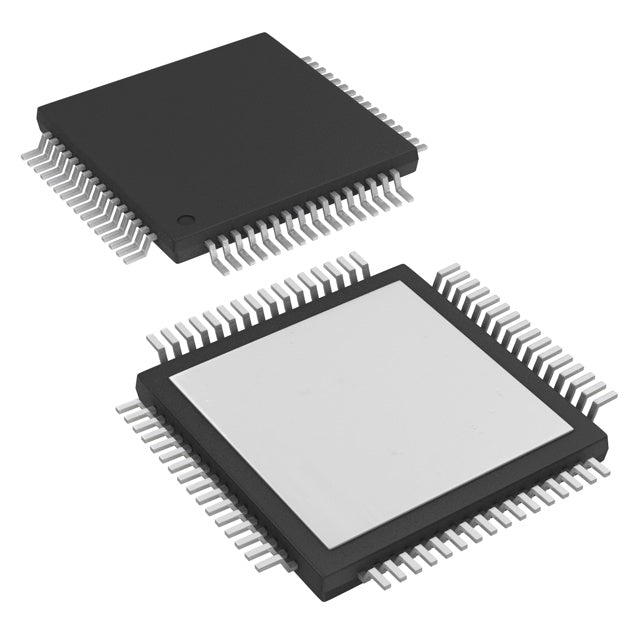

Texas Instruments ADS5242IPAPT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $330.97 | $330.97 |
| 15+ | $76.12 | $1,141.80 |
| 25+ | $74.47 | $1,861.75 |
| 50+ | $70.33 | $3,516.50 |
| 100+ | $62.06 | $6,206.00 |
| N+ | $12.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 65M |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) |
| ROHS |  |
The ADS5242IPAPT is a quad-channel, 12-bit analog-to-digital converter from Texas Instruments, designed for high-speed, multi-channel data acquisition. It offers a sampling rate of 65M SPS per channel and features an LVDS serial interface for efficient data transfer. Packaged in a 64-PowerTQFP, it is an excellent choice for medical imaging, communications, and industrial automation applications.
- Four-Channel Integration: Reduces component count and board space, lowering overall system cost for multi-channel designs.
- LVDS Outputs: Provide high noise immunity and low power consumption, ideal for dense digital environments.
- Simultaneous Sampling: Ensures phase-aligned data across all channels, critical for accurate multi-phase measurements.
- Wide Operating Range: -40°C to 85°C operation makes it suitable for industrial and automotive environments.
Medical Ultrasound Systems
The quad-channel, 12-bit, 65M SPS configuration is ideal for ultrasound beamforming, converting signals from multiple transducer elements with high precision for clear imaging.
Quad Data Acquisition Cards
In test and measurement, this ADC enables compact quad-channel DAQ cards for simultaneous sampling of multiple sensors in vibration analysis and motor testing.
Wireless Communication Receivers
With its LVDS interface and high speed, it supports multi-carrier GSM/WCDMA base station receivers, digitizing multiple channels for improved capacity.
Industrial Automation
In high-speed industrial control, the ADS5242IPAPT digitizes current and voltage feedback signals from multiple motor drives, enabling precise real-time control.
Scientific Instrumentation
Its multi-channel capability is suitable for particle detectors and spectroscopy systems, where simultaneous data capture from multiple sensors is required.
- Q: What is the resolution of the ADS5242IPAPT?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 65M SPS.
- Q: How many channels does it have?
- A: It has 4 input channels.
- Q: What interface does it use?
- A: It uses an LVDS - Serial interface.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What package is available?
- A: It comes in a 64-PowerTQFP package.
