Texas Instruments ADS5282IRGCT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $105.71 | $105.71 |
| 15+ | $102.37 | $1,535.55 |
| 25+ | $100.14 | $2,503.50 |
| 50+ | $94.58 | $4,729.00 |
| 100+ | $83.45 | $8,345.00 |
| N+ | $16.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 65M |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

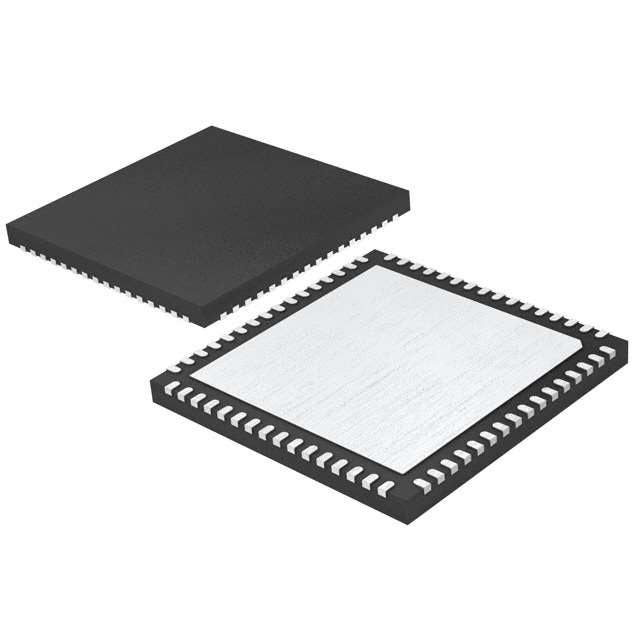

| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| ROHS |  |
The Texas Instruments ADS5282IRGCT is an 8-channel, 12-bit analog-to-digital converter with a sampling rate of 65 MSPS. It features LVDS - Serial and SPI interfaces, offering efficient data transfer and control. Housed in a 64-VFQFN package, it operates from -40°C to 85°C, making it suitable for multi-channel data acquisition and medical imaging.
- High Channel Density: 8 integrated ADCs reduce component count and simplify multi-channel system design.
- Efficient Data Transfer: LVDS serial output minimizes pin count and reduces EMI, ideal for high-speed data streaming.
- Flexible Control: SPI interface allows for easy configuration of ADC settings via a microcontroller.
- Space-Saving Package: The 64-VFQFN package is compact, suitable for dense PCB layouts.
Multi-Channel Data Acquisition Systems
With 8 channels and 12-bit resolution, this ADC is perfect for high-channel-count DAQ systems in industrial automation and monitoring.
Medical Imaging (CT Scanners)
The 8-channel configuration allows for simultaneous digitization of multiple detector elements, improving scan speed and image quality.
Power Grid Monitoring
Use the ADS5282IRGCT to monitor multiple phases and currents in smart grid applications, ensuring accurate power quality analysis.
Sonar and Acoustic Systems
The multiple channels and serial LVDS output are ideal for beamforming in sonar arrays and acoustic sensors.
Automotive Test Systems
This ADC can digitize multiple sensor signals (vibration, temperature, pressure) simultaneously for comprehensive vehicle testing.
- Q: What is the resolution of the ADS5282IRGCT?
- A: It is a 12-bit analog-to-digital converter, providing good dynamic range.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 65 MSPS.
- Q: How many channels does it have?
- A: It features 8 channels, making it ideal for multi-signal acquisition systems.
- Q: What interfaces are supported?
- A: It supports both LVDS - Serial and SPI interfaces for data output and configuration.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It is available in a 64-VFQFN Exposed Pad package.
