Texas Instruments ADS5292IPFP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $348.64 | $348.64 |
| 15+ | $80.19 | $1,202.85 |
| 25+ | $78.44 | $1,961.00 |
| 50+ | $74.09 | $3,704.50 |
| 100+ | $65.37 | $6,537.00 |
| N+ | $13.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

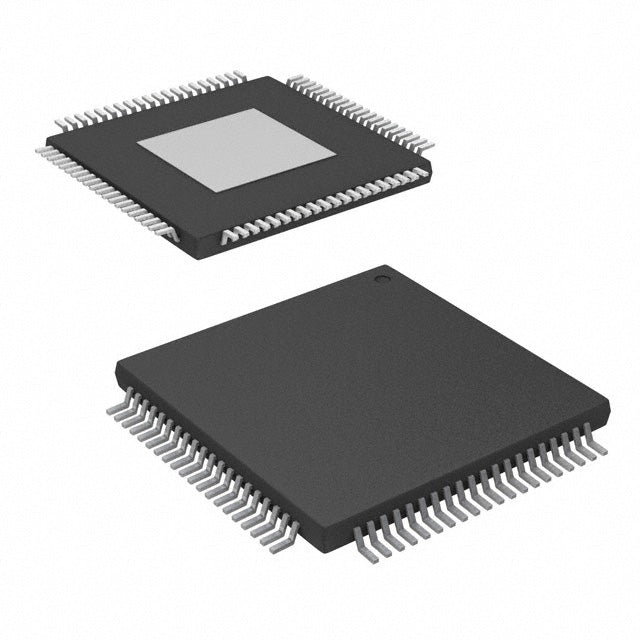

| Package / Case | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-HTQFP (12x12) |
| ROHS |  |
The ADS5292IPFP from Texas Instruments is a high-performance 12-bit, 8-channel analog-to-digital converter with a sampling rate of 80 MSPS. It features an LVDS serial interface for efficient high-speed data transfer and a sample-and-hold architecture optimized for dynamic performance. The device supports both external and internal voltage references, offering design flexibility. Housed in an 80-pin TQFP package with an exposed pad, it is designed for applications such as medical imaging, communications, and industrial data acquisition where multi-channel, high-speed conversion is required.
- High-Speed 8-Channel Conversion: Simultaneously samples 8 channels at 80 MSPS, enabling compact multi-channel systems without multiple ADCs.
- LVDS Serial Interface: Reduces digital I/O pin count and electromagnetic interference, simplifying PCB layout for high-speed designs.
- Flexible Reference Options: Supports both external and internal references, allowing optimization for accuracy or simplicity.
- Thermally Enhanced Package: The exposed pad in the 80-TQFP package improves heat dissipation for reliable operation at high sampling rates.
Ultrasound Imaging Systems
The 12-bit resolution and 80 MSPS sampling rate across 8 channels make the ADS5292IPFP ideal for ultrasound beamforming, where multiple transducer signals must be digitized simultaneously with high fidelity.
High-Speed Data Acquisition
With 80 MSPS sampling and LVDS serial output, this ADC excels in high-speed data acquisition systems for radar, lidar, and test instrumentation requiring precise waveform capture.
Medical Imaging Equipment
The combination of 8 channels and 12-bit resolution supports medical imaging modalities like CT scanners and digital X-ray systems, where low noise and high dynamic range are essential.
Communications Receivers
The ADS5292IPFP can digitize multiple IF signals in software-defined radio (SDR) receivers, leveraging its high sampling rate and serial LVDS interface for compact designs.
Industrial Inspection Systems
In automated optical inspection (AOI) and non-destructive testing, this ADC provides the speed and resolution needed to digitize sensor arrays for real-time defect detection.
- Q: What is the ADS5292IPFP?
- A: It is a 12-bit, 8-channel analog-to-digital converter from Texas Instruments with a sampling rate of 80 MSPS.
- Q: What is the resolution and sampling rate?
- A: The resolution is 12 bits, and the maximum sampling rate is 80 MSPS (80 million samples per second).
- Q: How many channels does it have?
- A: The ADS5292IPFP has 8 input channels, making it suitable for multi-channel applications.
- Q: What interface does it use?
- A: It uses an LVDS serial interface for high-speed data output, reducing pin count and EMI.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H-ADC) architecture, which is typical for high-speed pipeline ADCs.
- Q: What package is available?
- A: It comes in an 80-pin TQFP package with an exposed pad for improved thermal performance.
