Texas Instruments ADS5292IPFPT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $338.57 | $338.57 |
| 15+ | $77.87 | $1,168.05 |
| 25+ | $76.18 | $1,904.50 |
| 50+ | $71.94 | $3,597.00 |
| 100+ | $63.48 | $6,348.00 |
| N+ | $12.70 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-HTQFP (12x12) |
| ROHS |  |

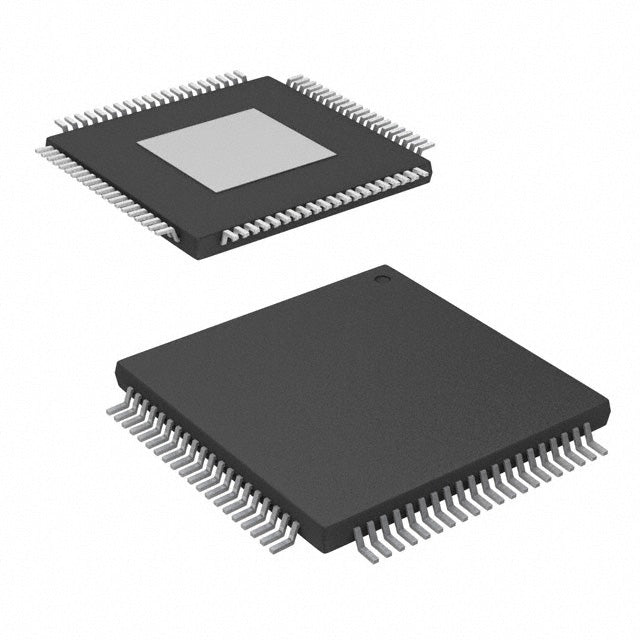

The ADS5292IPFPT is a 12-bit, 8-channel analog-to-digital converter from Texas Instruments, offering a sampling rate of 80 MSPS. It utilizes an LVDS serial interface to deliver high-speed data with minimal noise, and its sample-and-hold architecture ensures accurate capture of fast-changing signals. Supporting both external and internal references, this ADC provides design versatility. Supplied in tape-and-reel format in an 80-pin TQFP package with exposed pad, it is ideal for high-volume production in medical imaging, communications, and industrial data acquisition systems.
- Tape-and-Reel Packaging: Facilitates automated assembly for high-volume manufacturing, reducing production costs.
- 8-Channel Simultaneous Sampling: Captures multiple signals at 80 MSPS, ideal for beamforming and multi-sensor arrays.
- LVDS Interface: Ensures high-speed data integrity over longer distances on the PCB, reducing noise coupling.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive environments.
Portable Ultrasound Devices
The ADS5292IPFPT's 8-channel, 12-bit, 80 MSPS performance enables compact, battery-powered ultrasound systems, where the LVDS interface reduces cabling and power consumption.
High-Channel-Count Data Loggers
With 8 inputs and high-speed serial output, this ADC is perfect for data loggers that monitor multiple vibration or acoustic sensors simultaneously in structural health monitoring.
Radar and Sonar Systems
The 80 MSPS sampling rate and 12-bit dynamic range support phased-array radar and sonar beamforming, requiring precise phase-aligned digitization of multiple channels.
Automotive Test Equipment
In automotive validation, this ADC digitizes multiple sensor signals (e.g., pressure, temperature, vibration) at high speed for engine and chassis dynamometer testing.
Quantum Computing Control
The low-latency LVDS output and multi-channel capability make it suitable for digitizing control and readout signals in quantum processor experimental setups.
- Q: What is the ADS5292IPFPT?
- A: It is a 12-bit, 8-channel analog-to-digital converter from Texas Instruments with an 80 MSPS sampling rate, in tape-and-reel packaging.
- Q: What is the resolution?
- A: The resolution is 12 bits, offering 4096 discrete levels for accurate signal representation.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 80 MSPS (mega-samples per second).
- Q: How many channels are available?
- A: It provides 8 simultaneous sampling input channels.
- Q: What interface does it use?
- A: It uses an LVDS serial interface for high-speed, low-noise digital data transmission.
- Q: What is the package type?
- A: It is housed in an 80-pin TQFP package with an exposed pad, suitable for surface-mount assembly.
