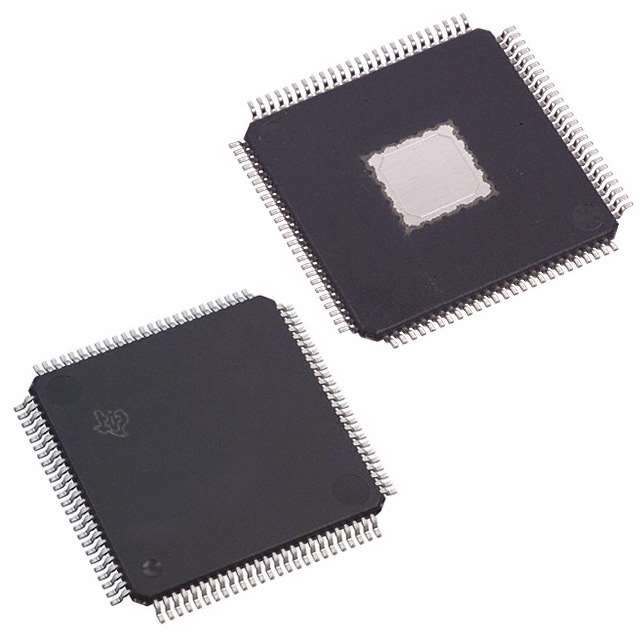

Texas Instruments ADS5400IPZP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,485.31 | $1,485.31 |
| 15+ | $1,438.40 | $21,576.00 |
| 25+ | $1,407.13 | $35,178.25 |
| 50+ | $1,328.96 | $66,448.00 |
| 100+ | $1,172.61 | $117,261.00 |
| N+ | $234.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1G |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.135V ~ 3.465V, 5V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 100-TQFP Exposed Pad |
| Supplier Device Package | 100-HTQFP (14x14) |
| ROHS |  |
The ADS5400IPZP from Texas Instruments is a 12-bit, single-channel ADC with a sampling rate of 1 GSPS. It features an LVDS - Parallel interface for high-speed data transfer and supports both external and internal references. Housed in a 100-TQFP exposed pad package, it operates from -40°C to 85°C. This ADC is well-suited for high-performance applications including medical imaging, communications, and automotive radar.
- High-Speed Sampling: 1 GSPS enables capture of fast transient signals with high fidelity.
- Flexible Reference: Supports both external and internal references for design versatility.
- Low Noise LVDS Interface: Differential signaling reduces electromagnetic interference.
- Wide Temperature Range: -40°C to 85°C ensures operation in automotive and industrial environments.
- Compact Package: 100-TQFP with exposed pad aids in thermal management.
High-Speed Data Acquisition Systems
The 1 GSPS sampling rate and LVDS interface make the ADS5400IPZP ideal for digitizing wideband signals in research and industrial DAQ systems.
Medical Ultrasound Imaging
High-speed sampling enables precise capture of ultrasound echoes, improving image quality in diagnostic equipment.
Communications Receivers
With external/internal reference options, it can be tailored for IF sampling in software-defined radios (SDR).
Automotive Radar
The -40°C to 85°C temperature range and high-speed performance suit automotive collision avoidance systems.
Scientific Instrumentation
Its LVDS parallel interface simplifies connection to FPGAs for real-time signal processing in particle detectors.
- Q: What is the sampling rate of the ADS5400IPZP?
- A: It operates at a maximum sampling rate of 1 GSPS (1G samples per second).
- Q: What is the resolution?
- A: It provides 12-bit resolution, offering high precision for high-speed signals.
- Q: What interface does it use?
- A: It uses an LVDS - Parallel interface, providing high-speed differential signaling.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What reference options are available?
- A: It supports both external and internal references, offering flexibility in system design.
- Q: What is the package type?
- A: It comes in a 100-TQFP exposed pad package.
