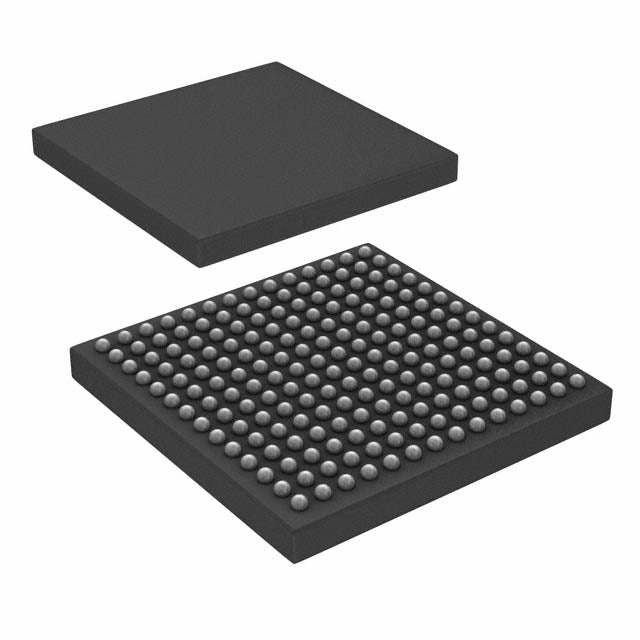

Texas Instruments ADS5407IZAY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,706.67 | $1,706.67 |
| 15+ | $392.54 | $5,888.10 |
| 25+ | $384.00 | $9,600.00 |
| 50+ | $362.67 | $18,133.50 |
| 100+ | $320.00 | $32,000.00 |
| N+ | $64.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3.15V ~ 3.45V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 196-LFBGA |
| Supplier Device Package | 196-NFBGA (12x12) |
| ROHS |  |
The ADS5407IZAY is a high-performance 12-bit dual-channel ADC with a sampling rate of 500M SPS. It features a sample-and-hold architecture and an LVDS-parallel interface for high-speed data transfer. Housed in a compact 196-ball LFBGA package, this ADC is designed for demanding applications such as wireless communications, medical imaging, and test equipment. Its dual-channel design allows simultaneous sampling of two signals, making it a versatile choice for advanced systems.
- Ultra-High Speed: 500M SPS sampling rate captures fast transient signals.
- Dual Channels: Simultaneous sampling of two inputs for I/Q or stereo applications.
- LVDS Interface: High-speed, low-noise digital output for modern processors.
- Compact Package: 196-LFBGA saves board space in dense designs.
High-Speed Data Acquisition Systems
The ADS5407IZAY's 500M SPS sampling rate and dual channels make it ideal for high-speed digitizers used in oscilloscopes and logic analyzers.
Wireless Communications
In 5G and radar systems, this ADC digitizes wideband IF signals with high dynamic range.
Medical Ultrasound
Dual-channel capability supports phased-array ultrasound transducers, enabling high-resolution imaging.
Test and Measurement Equipment
Spectrum analyzers and signal generators benefit from the high sampling rate and LVDS interface for fast data throughput.
Military and Aerospace
With -40°C to 85°C operation, it suits defense electronics requiring reliable high-speed conversion.
Software-Defined Radio
The ADC's wide bandwidth and dual channels enable flexible SDR platforms for various communication standards.
- Q: What is the ADS5407IZAY?
- A: It is a 12-bit dual-channel analog-to-digital converter (ADC) with a sample-and-hold architecture.
- Q: What is the resolution?
- A: It provides 12-bit resolution, yielding 4096 output codes.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 500M SPS.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It uses an LVDS - Parallel interface for high-speed data output.
- Q: What is the package?
- A: It is available in a 196-ball LFBGA package.
