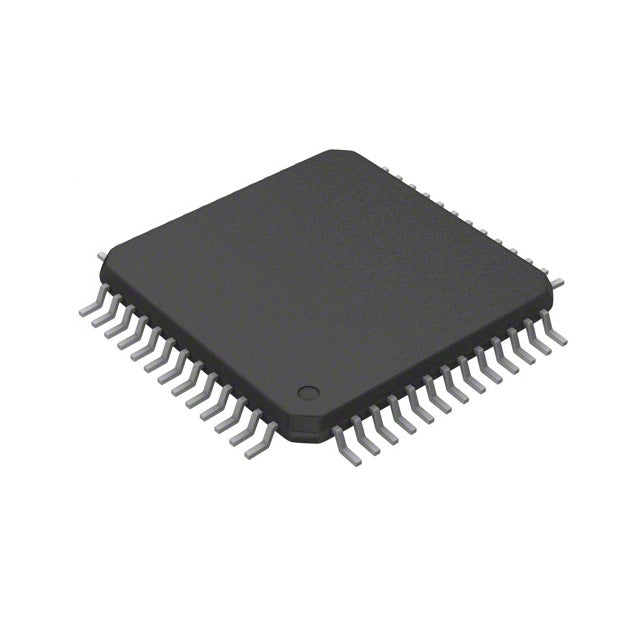

Texas Instruments ADS5411IPGP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $183.83 | $183.83 |
| 15+ | $42.28 | $634.20 |
| 25+ | $41.36 | $1,034.00 |
| 50+ | $39.07 | $1,953.50 |
| 100+ | $34.47 | $3,447.00 |
| N+ | $6.89 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 11 |
| Sampling Rate (Per Second) | 105M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 52-TQFP Exposed Pad |
| Supplier Device Package | 52-HTQFP (10x10) |
| ROHS |  |
The ADS5411IPGP from Texas Instruments is an 11-bit, 105M SPS analog-to-digital converter featuring an LVDS - Parallel interface for high-speed data transfer. With a single channel and S/H-ADC architecture, it delivers excellent dynamic performance for demanding applications. The internal reference simplifies design, and the -40°C to 85°C operating range ensures industrial-grade reliability. Housed in a 52-TQFP Exposed Pad package, it is ideal for wireless, medical, and test equipment.
- High-Speed LVDS Interface: 105M SPS with LVDS output reduces digital noise and supports long-distance transmission.
- Internal Reference: Simplifies circuit design and reduces external component count.
- Industrial Temperature Range: -40°C to 85°C ensures operation in harsh environments.
- Excellent Dynamic Performance: S/H-ADC architecture provides accurate sampling of high-frequency signals.
Wireless Base Stations
The 105M SPS sampling rate and LVDS interface make the ADS5411IPGP perfect for digitizing IF signals in 3G/4G/5G base stations, enabling high-speed data transfer to FPGAs.
Medical Imaging
11-bit resolution provides good image quality for ultrasound and MRI systems where fast, accurate signal conversion is required.
Radar Systems
High-speed sampling supports pulse compression and Doppler processing in defense and weather radar applications.
Communications Test Equipment
Use in spectrum analyzers and signal generators where wide bandwidth and low noise are essential.
Industrial Automation
With an internal reference and wide temperature range (-40°C to 85°C), it suits industrial control systems requiring reliable high-speed conversion.
- Q: What is the resolution of the ADS5411IPGP?
- A: It is an 11-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 105M SPS.
- Q: What interface does it use?
- A: It uses an LVDS - Parallel interface.
- Q: How many channels are available?
- A: It has a single (1) input channel.
- Q: What is the architecture?
- A: The architecture is S/H-ADC (Sample and Hold).
- Q: What is the package type?
- A: It comes in a 52-TQFP Exposed Pad package.
