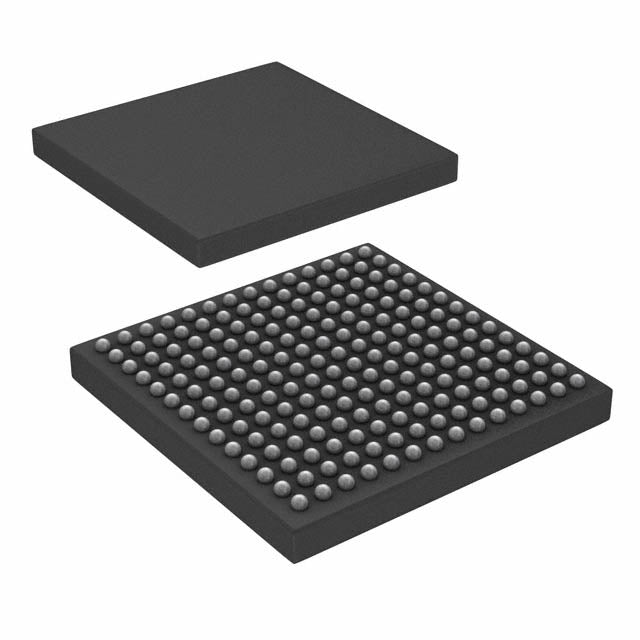

Texas Instruments ADS54T02IZAY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2,046.27 | $2,046.27 |
| 15+ | $470.64 | $7,059.60 |
| 25+ | $460.41 | $11,510.25 |
| 50+ | $434.83 | $21,741.50 |
| 100+ | $383.68 | $38,368.00 |
| N+ | $76.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 750M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3.15V ~ 3.45V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 196-LFBGA |
| Supplier Device Package | 196-NFBGA (12x12) |
| ROHS |  |
The ADS54T02IZAY from Texas Instruments is a high-speed, 12-bit, dual-channel analog-to-digital converter. It delivers a sampling rate of 750 MSPS, making it suitable for a wide range of high-performance applications. The device features an LVDS - Parallel interface for high-speed data output and includes an internal voltage reference to simplify design. Packaged in a 196-LFBGA, it operates over an industrial temperature range of -40°C to 85°C, making it a versatile choice for communications, radar, and test equipment.
- High-Speed Dual-Channel: Two 12-bit ADCs in one package with 750 MSPS sampling rate enable compact, high-density system designs.
- Integrated Reference: The internal reference reduces external component count and simplifies power supply design.
- LVDS Interface: Low-voltage differential signaling ensures high-speed, low-noise data transfer to FPGAs or ASICs.
- Industrial Temperature Range: Reliable operation from -40°C to 85°C makes it suitable for a broad range of industrial and commercial applications.
Wideband Communication Systems
The 750 MSPS sampling rate and 12-bit resolution make the ADS54T02IZAY ideal for wideband communication receivers, including 5G and satellite ground stations.
Radar Signal Processing
Dual channels enable simultaneous I/Q sampling for radar systems, improving target detection and resolution in both military and weather radar applications.
High-Resolution Test Equipment
For high-end test and measurement instruments, this ADC offers the speed and accuracy needed for analyzing complex modulated signals.
Medical Ultrasound
The high sampling rate supports advanced ultrasound imaging techniques, providing clearer images through better temporal resolution.
Scientific Instrumentation
In physics and chemistry research, the ADS54T02IZAY can digitize fast transient events with high precision, enabling detailed analysis of experimental data.
- Q: What is the resolution of the ADS54T02IZAY?
- A: This ADC provides 12-bit resolution.
- Q: What is the sampling rate?
- A: It operates at a sampling rate of 750 MSPS (750M samples per second).
- Q: How many channels does it have?
- A: It features 2 input channels.
- Q: What interface does it use?
- A: It uses an LVDS - Parallel interface.
- Q: What is the reference type?
- A: It has an internal voltage reference.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C.
